Product Description

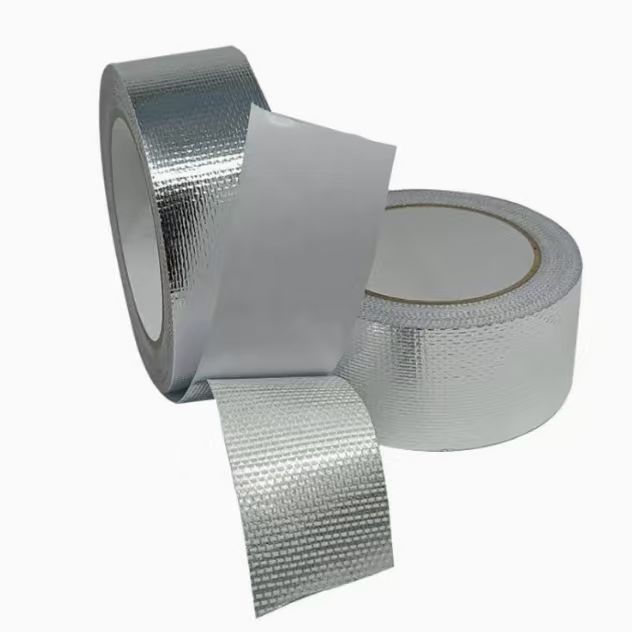

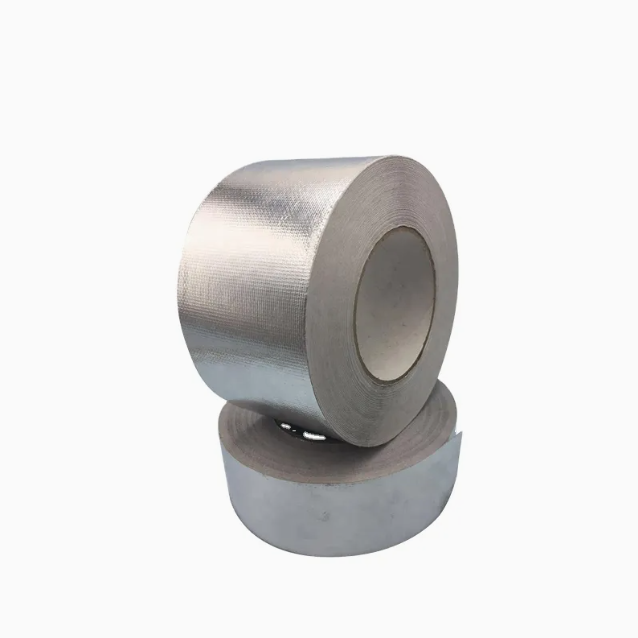

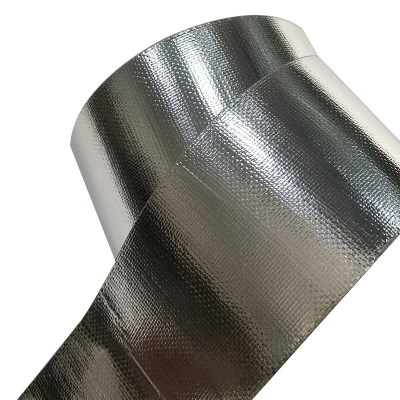

RUISHUN Aluminum Foil Fiberglass Fabric Tape is a high-performance industrial insulation tape designed for heat reflection, thermal insulation, fire resistance, moisture protection, and sealing in high-temperature environments.
This tape is manufactured from high-strength woven fiberglass fabric laminated with industrial-grade aluminum foil and combined with a high-temperature pressure-sensitive adhesive. The fiberglass fabric provides mechanical strength and dimensional stability, while the aluminum foil layer reflects radiant heat and acts as a moisture and vapor barrier.
As a fiberglass fabric source manufacturer, RUISHUN controls the production process from fiberglass yarn selection and fabric weaving to foil lamination and adhesive coating. This helps ensure consistent quality, stable performance, and reliable supply for global OEM customers, HVAC contractors, insulation distributors, and industrial buyers.
Aluminum foil fiberglass fabric tape is a reinforced heat-resistant tape made by bonding aluminum foil to woven fiberglass fabric and applying a high-temperature adhesive backing. It combines radiant heat reflection, tear resistance, fire resistance, insulation sealing, and easy installation in one material.
Compared with ordinary aluminum foil tape, fiberglass reinforced aluminum foil tape offers higher tensile strength, better dimensional stability, and improved durability under heat and mechanical stress.
The tape is designed for continuous use in elevated temperature environments. The continuous operating temperature is typically up to 260°C, depending on the adhesive system.
The aluminum foil surface reflects up to 90% of radiant heat, reducing heat transfer and improving insulation efficiency in HVAC, automotive, and industrial heat protection applications.
Woven fiberglass fabric provides high tensile strength, tear resistance, and dimensional stability under heat stress, making the tape more durable than standard foil tapes.
The aluminum foil layer helps prevent moisture and vapor penetration, making the tape suitable for duct sealing, insulation wrapping, vapor barrier repair, and joint reinforcement.
RUISHUN can provide high-temperature acrylic adhesive or silicone adhesive options for bonding to metal, fiberglass board, aluminum foil insulation, composite substrates, and insulation materials.
The tape conforms well to irregular surfaces, corners, seams, and joints without easy cracking or delamination, supporting fast installation in industrial insulation projects.
| Item | Specification |
|---|---|
| Product Name | Aluminum Foil Fiberglass Fabric Tape |
| Base Material | Fiberglass fabric + aluminum foil |
| Fiberglass Thickness | 0.13–0.25 mm |
| Aluminum Foil Thickness | 18–25 microns |
| Adhesive Type | High-temperature acrylic / silicone adhesive optional |
| Continuous Temperature Resistance | Up to 260°C, adhesive dependent |

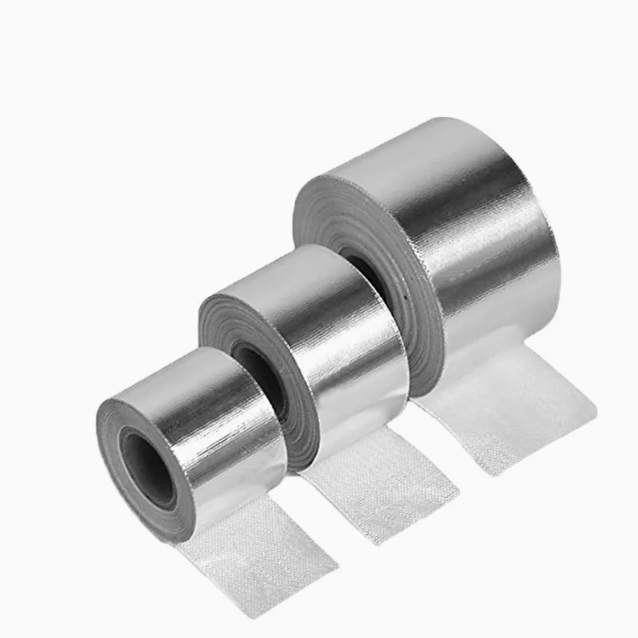

| Standard Widths | 25 / 50 / 75 / 100 mm |
| Standard Roll Length | 20 / 30 / 50 m |
| Color | Silver |
| Customization | Custom thickness, width, adhesive type, core size, packaging and private label |
Custom thickness, width, adhesive type, roll length, core size, packaging, and private label options are available for OEM projects and bulk industrial orders.
HVAC duct wrapping, sealing, and joint reinforcement
Thermal insulation systems for pipes, tanks, and equipment
Automotive engine compartments and exhaust heat shielding
Fire-resistant wrapping for cables and wire harnesses
Welding areas and hot-work zone protection
Power plants, oil and gas facilities, and industrial furnaces
Aluminum foil insulation repair and vapor barrier sealing
Industrial equipment protection and heat shield assembly
High-temperature acrylic adhesive is suitable for many HVAC duct sealing, insulation wrapping, foil-faced insulation repair, and general industrial sealing applications where balanced adhesion and cost efficiency are required.
Silicone adhesive is recommended for higher-temperature environments, automotive heat shielding, hot-work protection, and applications where long-term heat exposure may affect standard adhesive performance.
For best bonding performance, surfaces should be clean, dry, and free from oil, dust, or loose particles. Outdoor or wet environments should be evaluated based on adhesive type and sealing requirements.

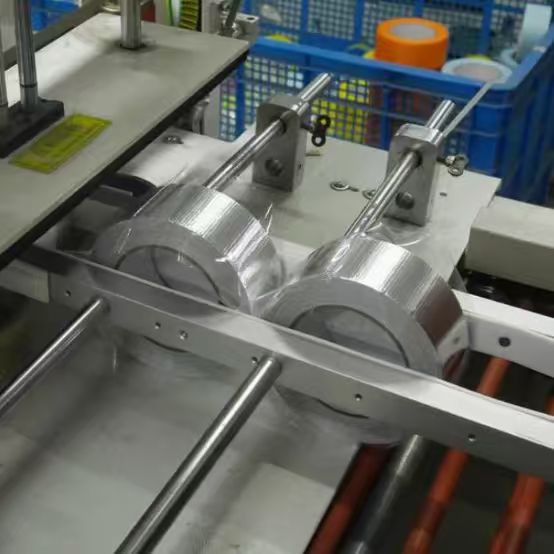

RUISHUN controls the fiberglass fabric production process, helping ensure stable fabric quality, consistent reinforcement strength, and better cost control for bulk orders.
From woven fiberglass base fabric to aluminum foil lamination and adhesive coating, RUISHUN supports customized tape structures for industrial insulation, HVAC, automotive, and fire protection applications.
RUISHUN can customize tape width, roll length, adhesive system, core size, packaging, labels, and private branding for distributors, contractors, industrial insulation suppliers, and OEM customers.
RUISHUN aluminum foil fiberglass fabric tape is supplied for industrial insulation markets with consistent quality, reliable lead time, and support for global B2B purchasing.
The fiberglass fabric and aluminum foil are inherently fire-resistant and non-combustible. However, overall fire performance depends on the adhesive type used. Silicone adhesive generally offers higher heat resistance than acrylic adhesive.
The continuous operating temperature is typically up to 260°C, depending on the adhesive system. Higher-temperature solutions can be discussed for specific applications.
Yes. It is widely used in HVAC systems for duct sealing, insulation wrapping, and joint reinforcement because it provides heat reflection, moisture barrier performance, and strong adhesion.
Yes. It is commonly used in engine compartments, exhaust systems, battery areas, and heat shielding applications where radiant heat protection and durability are required.
The tape adheres well to clean and dry metal surfaces, insulation materials, aluminum foil insulation, fiberglass boards, and composite substrates.
The aluminum foil layer provides excellent moisture and vapor resistance. Overall performance in outdoor or wet environments depends on installation conditions and adhesive selection.
Yes. RUISHUN offers OEM services including custom widths, roll lengths, adhesive types, core sizes, packaging, and private labeling.
No. RUISHUN aluminum foil fiberglass fabric tape is asbestos-free and suitable for modern industrial insulation and fire protection applications.
Store the tape in a cool, dry environment away from direct sunlight. Proper storage helps maintain adhesive performance and shelf life.
Yes. TDS and MSDS documents are available upon request for customer reference, procurement review, and regulatory compliance.
Contact RUISHUN with your required tape width, roll length, adhesive type, operating temperature, application surface, packaging requirements, and order quantity. Our team can recommend a suitable aluminum foil fiberglass fabric tape solution for HVAC sealing, thermal insulation, heat shielding, fire protection, or OEM distribution.
