Product Description
RUISHUN® fireproof shutter curtain is a fabric-based fire protection material designed for fire-rated rolling shutter systems, fire curtains, industrial fire barriers, smoke compartmentation, commercial building fire separation, and high-temperature protection systems.
Made from high-strength fiberglass fabric with optional silicone, vermiculite, aluminum foil, or other fire-resistant coatings, the curtain material provides excellent flame resistance, radiant heat resistance, dimensional stability, tensile strength, and long-term durability.
As a fiberglass fireproof fabric manufacturer and factory-direct supplier, RUISHUN supports fire shutter manufacturers, fire curtain system integrators, construction contractors, building safety projects, and global distributors with customized specifications and stable bulk supply.
| Product Name | Fireproof Shutter Curtain / Fire-Resistant Fiberglass Shutter Curtain |
| Base Material | High-strength fiberglass fabric |
| Coating Options | Silicone, vermiculite, aluminum foil, or customized fire-resistant coating |
| Thickness Range | 0.6 – 1.5 mm, customizable |
| Weight Range | 430 – 1200 g/m² |
| Temperature Resistance | Continuous use approx. 550–600°C; higher short-term resistance available with special coatings |
| Main Applications | Fire-rated rolling shutters, fire curtains, smoke barriers, warehouses, malls, parking areas, metro stations, factory fire zones |
A fireproof shutter curtain is a flexible fire-resistant fabric used in rolling fire shutter systems and fire compartmentation systems. It helps slow flame spread, block radiant heat, separate fire zones, and protect escape routes or building areas during fire emergencies.
Compared with rigid metal shutter panels, fiberglass-based fire shutter curtains are lightweight, flexible, customizable, and easier to integrate into compact fire curtain or rolling shutter systems. They are suitable for industrial, commercial, public infrastructure, and building fire safety applications.
Excellent fire resistance: Fiberglass fabric is non-combustible and suitable for fire-rated shutter and curtain systems.
High temperature stability: Continuous resistance around 550–600°C, with higher short-term performance available through special coatings.
High tensile strength: Maintains fabric integrity during rolling, installation, thermal exposure, and emergency operation.
Dimensional stability: Helps reduce deformation under high temperature and thermal shock.
Lightweight and flexible: Easier to process, install, roll, and integrate than many rigid fire protection panels.
Custom coating options: Silicone, vermiculite, aluminum foil, and reinforced structures are available for different fire protection requirements.
Factory-direct customization: Thickness, weight, width, color, coating, reinforcement, and packing can be customized for project orders.
| Layer / Option | Description | Function |
|---|---|---|
| Base Fabric | Woven fiberglass fabric | Fire resistance, strength, dimensional stability, thermal protection |
| Silicone Coating | Single-side or double-side silicone coated fiberglass fabric | Improves flexibility, abrasion resistance, weather resistance, and sealing performance |
| Vermiculite Coating | High-temperature mineral coating | Enhances resistance to flame, sparks, and high heat exposure |
| Aluminum Foil Lamination | Reflective aluminum foil surface | Reflects radiant heat and improves surface protection |
| Reinforcement | Wire insert, high-density weave, reinforced edge, or customized structure | Improves tensile strength and curtain durability in rolling shutter systems |

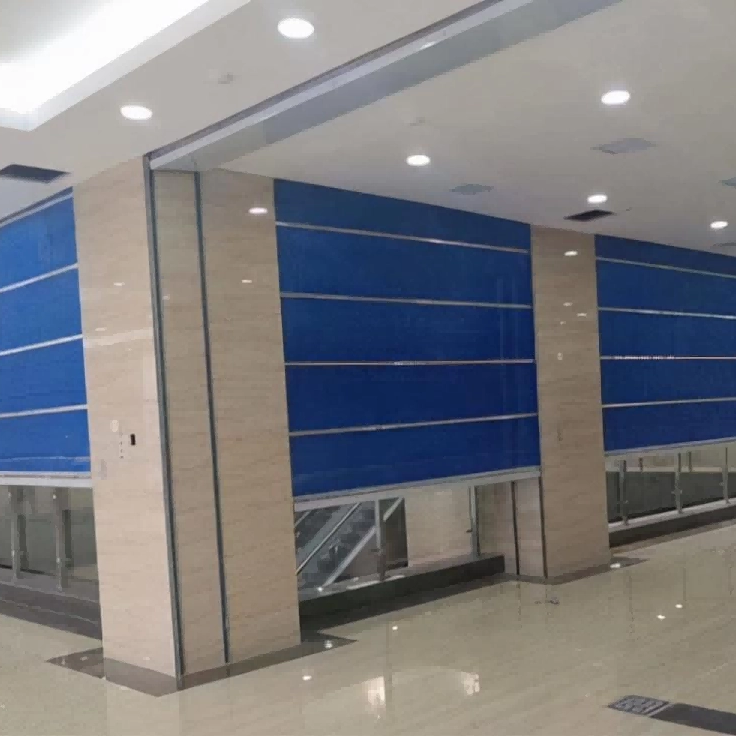

Fire-rated rolling shutter systems
Industrial fire curtains and fire compartmentation systems
Warehouses, logistics centers, and storage facilities
Commercial buildings, shopping malls, hotels, and office complexes
Underground parking areas, metro stations, tunnels, and public infrastructure
Factory fire separation zones and production area partitions
Industrial fire barriers, smoke barriers, and emergency fire protection screens
| Property | Typical Value |
|---|---|
| Base Material | Fiberglass fabric |
| Thickness | 0.6 – 1.5 mm, customizable |
| Weight | 430 – 1200 g/m² |
| Continuous Temperature | Approx. 550–600°C |
| Short-Term Temperature | Higher short-term resistance available with special coating or reinforced structure |
| Flame Resistance | Non-combustible fiberglass base fabric |
| Tensile Strength | High tensile strength; custom warp and weft specifications available |
| Coating Options | Silicone / vermiculite / aluminum foil / customized fire-resistant coating |
| Width | Up to 3000 mm, custom width available |
| Color | Natural, gray, silver, or custom color |
| Supply Form | Roll goods, cut panels, or customized curtain material |
Exact specifications can be customized according to fire rating, rolling shutter design, installation method, and project requirements.
Custom thickness and weight: 0.6 – 1.5 mm and 430 – 1200 g/m² available depending on performance requirements.
Custom width: Wide-width fabric available up to 3000 mm for large fire shutter systems.
Custom coating: Silicone, vermiculite, aluminum foil, or project-specific fireproof coating.
Custom reinforcement: Wire insert, high-density weave, reinforced edge, sewn edge, or laminated structure.
Custom color: Natural, gray, silver, black, or other required colors.
OEM support: Private labeling, technical datasheet support, project packaging, and export documentation.
Fiberglass fabric source factory: Full control of weaving, coating, inspection, and packing.
Stable quality for fire protection systems: Consistent thickness, weight, width, tensile strength, and surface quality.
Customization for fire shutter manufacturers: Material structure can be adjusted based on system design and fire rating requirements.
B2B project supply: Suitable for fire shutter manufacturers, installers, EPC contractors, construction projects, and distributors.
Export experience: Support for international packing, labeling, documentation, sample testing, and long-term supply contracts.
Competitive factory pricing: Direct supply with no middleman for bulk and repeat orders.
Fiberglass yarn and base fabric inspection
Fabric thickness, weight, width, and appearance control
Coating thickness, coating adhesion, and surface uniformity inspection
Heat resistance and flame resistance evaluation
Tensile strength and dimensional stability testing
Roll length, packing, labeling, and export carton inspection
Samples available for project testing and system evaluation
A fireproof shutter curtain is typically made from high-strength fiberglass fabric. It may also include silicone, vermiculite, aluminum foil, or other fire-resistant coatings to improve flame resistance, radiant heat protection, surface durability, and system performance.
Yes. Fiberglass fabric is widely used for fabric-based fire shutter curtains because it is non-combustible, thermally stable, dimensionally stable, and strong enough for rolling shutter and fire curtain applications.
Standard fiberglass shutter curtain material typically withstands continuous temperatures around 550–600°C. Special coatings and reinforced structures can improve short-term heat resistance for demanding fire protection applications.
Yes. RUISHUN can customize thickness, weight, width, coating type, color, reinforcement, surface finish, packing, and roll length according to fire rating requirements, shutter system design, and project specifications.
They are used in fire-rated rolling shutter systems, industrial fire curtains, warehouses, logistics centers, shopping malls, commercial buildings, underground parking areas, metro stations, tunnels, and factory fire separation zones.
Yes. RUISHUN supports OEM production, customized specifications, sample testing, bulk orders, export packing, and long-term supply for fire shutter manufacturers, fire curtain system integrators, construction contractors, and distributors.
Please provide required thickness, weight, width, coating type, color, quantity, fire rating target, system design requirement, packing method, and destination country. RUISHUN will recommend a suitable material structure and provide factory-direct pricing.
Contact RUISHUN for factory-direct pricing on fireproof shutter curtains, fire-resistant fiberglass shutter curtain materials, fire-rated rolling shutter fabric, industrial fire curtain fabric, smoke barrier fabric, silicone coated fire curtain fabric, vermiculite coated fiberglass curtain, and aluminum foil laminated fiberglass fireproof fabric. We support samples, OEM production, custom specifications, bulk orders, and long-term project supply.
