Product Description

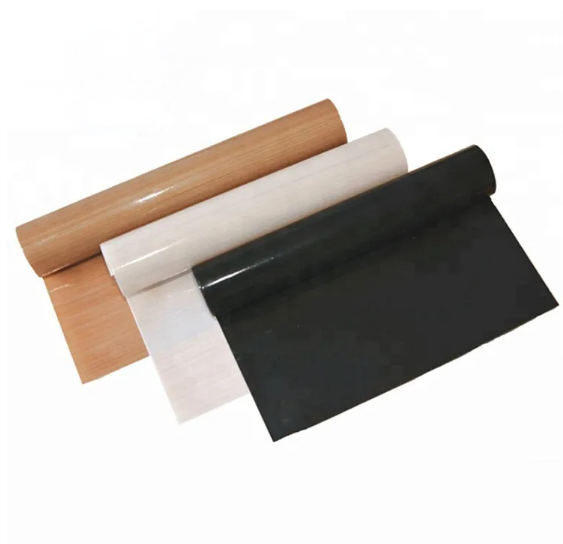

The RUISHUN PTFE Coated Fiberglass Fabric is made from high-strength E-glass fiberglass fabric coated with premium PTFE resin. It provides excellent non-stick performance, heat resistance, chemical resistance, dimensional stability, low friction, flame retardancy, and electrical insulation for demanding industrial applications.
As a direct PTFE coated fiberglass fabric manufacturer, RUISHUN supports in-house fiberglass weaving, PTFE coating, inspection, roll packing, and export supply. We serve OEM buyers, industrial equipment manufacturers, conveyor belt producers, insulation system integrators, distributors, and global B2B customers.
This fabric can be customized by thickness, width, weight, color, coating level, roll length, surface finish, cut sheet size, and packaging format for high-temperature, non-stick, release, insulation, conveyor, and chemical-resistant applications.
| Product Name | PTFE Coated Fiberglass Fabric |
| Base Material | E-glass Fiberglass Fabric |
| Coating | PTFE Resin, Single-side or Double-side Coating |
| Thickness Range | 0.08–0.80 mm, Customizable |
| Temperature Resistance | Continuous Use from -70°C to +260°C; Short-term up to 300°C |
| Main Features | Non-stick, High-temperature Resistant, Chemical Resistant, Flame Retardant, Low Friction |
| Common Uses | Heat Sealing, Conveyor Belts, Release Sheets, Insulation Covers, Expansion Joints, Drying and Laminating Lines |
Factory direct supply: RUISHUN has fiberglass weaving and PTFE coating production capabilities for stable long-term supply.
Custom manufacturing: Thickness, weight, width, color, coating ratio, surface finish, and roll size can be customized.
Stable batch consistency: Suitable for repeat industrial purchasing programs and OEM supply chains.
B2B export experience: Support for OEM projects, private labeling, export packing, and international documentation.
Application-focused selection: Different grades are available for heat sealing, release, insulation, conveyor belt, and chemical-resistant applications.

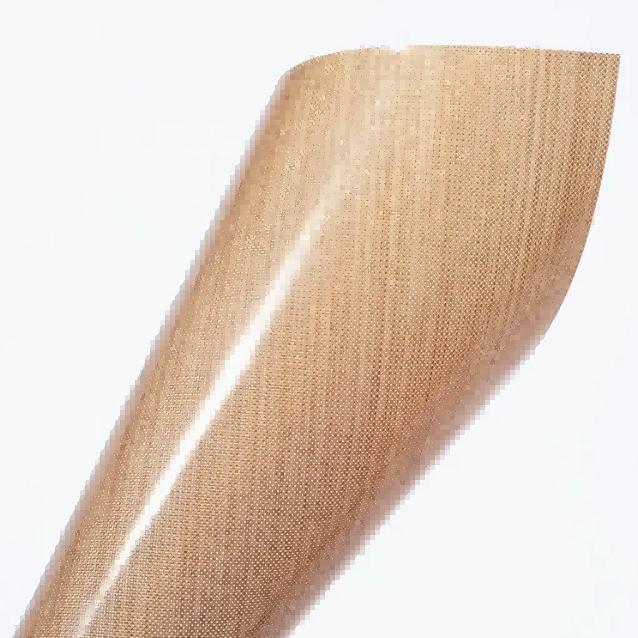

Excellent non-stick surface: Ideal for release sheets, heat sealing equipment, anti-adhesion surfaces, and processing liners.
High temperature resistance: Performs reliably in continuous thermal environments from -70°C to +260°C.
Chemical and solvent resistance: Suitable for industrial environments exposed to acids, alkalis, oils, and solvents.
Low friction coefficient: Helps improve material transfer, release performance, and conveyor operation.
Dimensional stability: Fiberglass reinforcement provides strength and shape stability under heat and tension.
Flame retardant and electrical insulation: Suitable for thermal insulation, electrical insulation, and high-temperature protective layers.
| Custom Item | Available Options |
|---|---|
| Base Fabric | Plain Weave, Twill Weave, Satin Weave Fiberglass Fabric |
| Thickness | 0.08 mm, 0.13 mm, 0.18 mm, 0.25 mm, 0.35 mm, 0.50 mm, 0.80 mm, or Customized |
| Weight | 80–1200 g/m² |
| Width | Standard and Custom Widths Available, Up to 4000 mm Depending on Specification |
| Color | Brown, Black, White, or Customized |
| Coating Type | Single-side Coating, Double-side Coating, Smooth Surface, Textured Surface |
| Packing | Rolls, Cut Sheets, Cartons, Pallets, OEM Labels, Private-label Packing |
Heat sealing machines and packaging equipment
PTFE conveyor belts, mesh belts, and industrial transfer belts
Release sheets for rubber, plastic, composite, and resin molding
Thermal insulation jackets, removable insulation covers, and expansion joints
Chemical processing equipment liners and protective barriers
Drying, printing, laminating, and textile processing lines
Electrical insulation and high-temperature protective layers
| Item | Specification |
|---|---|
| Material | PTFE Coated E-glass Fiberglass Fabric |
| Thickness | 0.08–0.80 mm |
| Weight | 80–1200 g/m² |
| Working Temperature | -70°C to +260°C |
| Short-term Temperature | Up to 300°C |
| Surface Property | Smooth, Non-stick, Low Friction |
| Chemical Resistance | Excellent Resistance to Many Industrial Chemicals and Solvents |
| Flame Performance | Flame Retardant |
| Supply Form | Rolls or Cut Sheets |
RUISHUN controls each production stage to help ensure stable quality for industrial buyers. The inspection process covers fiberglass base fabric, coating uniformity, surface appearance, thickness, tensile performance, heat resistance, roll quality, labeling, and packing.
Incoming fiberglass yarn and fabric inspection
PTFE coating thickness and surface uniformity control
High-temperature resistance testing
Tensile strength and dimensional stability inspection
Roll length, width, appearance, and packing inspection
Export-standard carton, pallet, label, and shipping mark support
Available compliance support: ISO-based quality control, RoHS, and REACH documentation are available upon request.
MOQ: Standard specifications support trial orders; bulk pricing is available for volume orders.
Packing: PE film, carton, pallet, export wooden case, or OEM private-label packing.
Delivery: Standard products can be arranged quickly; customized orders depend on specification and order quantity.
Shipping: Sea freight, air freight, and courier sample shipment are available.
To choose the correct grade, please confirm the working temperature, required thickness, fabric weight, surface finish, tensile requirement, chemical exposure, roll width, and final application. RUISHUN can recommend suitable specifications based on your machine type, processing temperature, and service environment.
For OEM or project orders, please provide drawings, samples, technical data sheets, or application photos. Our team can support specification matching, sample testing, and bulk production.
PTFE coated fiberglass fabric is a composite material made by coating fiberglass fabric with PTFE resin. It combines the strength and dimensional stability of fiberglass with the non-stick, heat-resistant, and chemical-resistant properties of PTFE.
RUISHUN is a direct manufacturer with fiberglass weaving, PTFE coating, inspection, and packing capabilities. We supply factory-direct PTFE coated fiberglass fabric for industrial B2B buyers.
Yes. RUISHUN supports customized thickness, width, weight, color, coating ratio, surface finish, roll length, cut size, and OEM packing according to project requirements.
The typical continuous working temperature range is -70°C to +260°C, with short-term heat resistance up to 300°C depending on the operating environment and specification.
It is widely used in packaging machinery, heat sealing equipment, conveyor belts, rubber and plastic molding, composite release processes, thermal insulation, chemical processing, drying lines, printing lines, and laminating equipment.
Yes. Samples can be supplied for material confirmation, machine testing, heat resistance testing, and release performance evaluation before bulk purchasing.
Yes. RUISHUN supports OEM production, private labeling, customized packing, repeat orders, and long-term supply agreements for global industrial customers.
Contact RUISHUN to get a factory-direct quotation for PTFE coated fiberglass fabric. Please share your required thickness, width, weight, color, quantity, application, and destination port so we can recommend the right specification and provide accurate pricing.
