Product Description

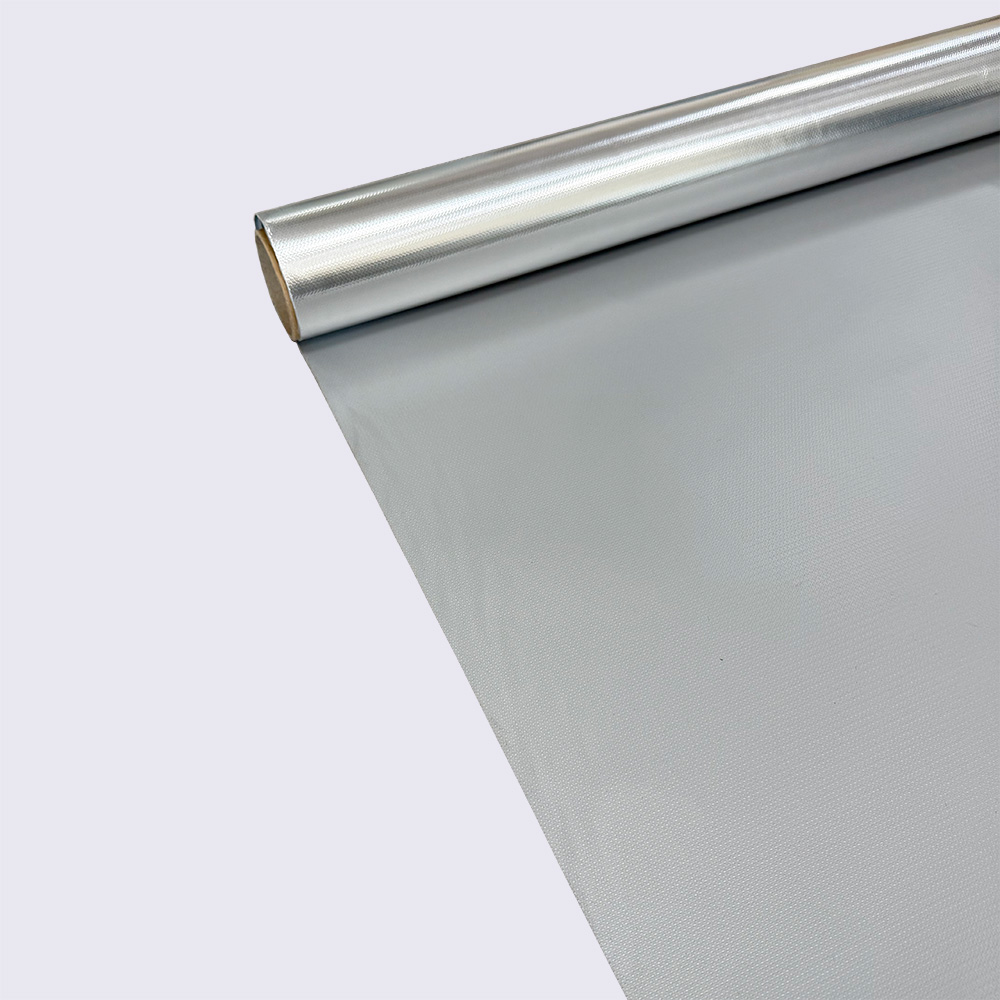

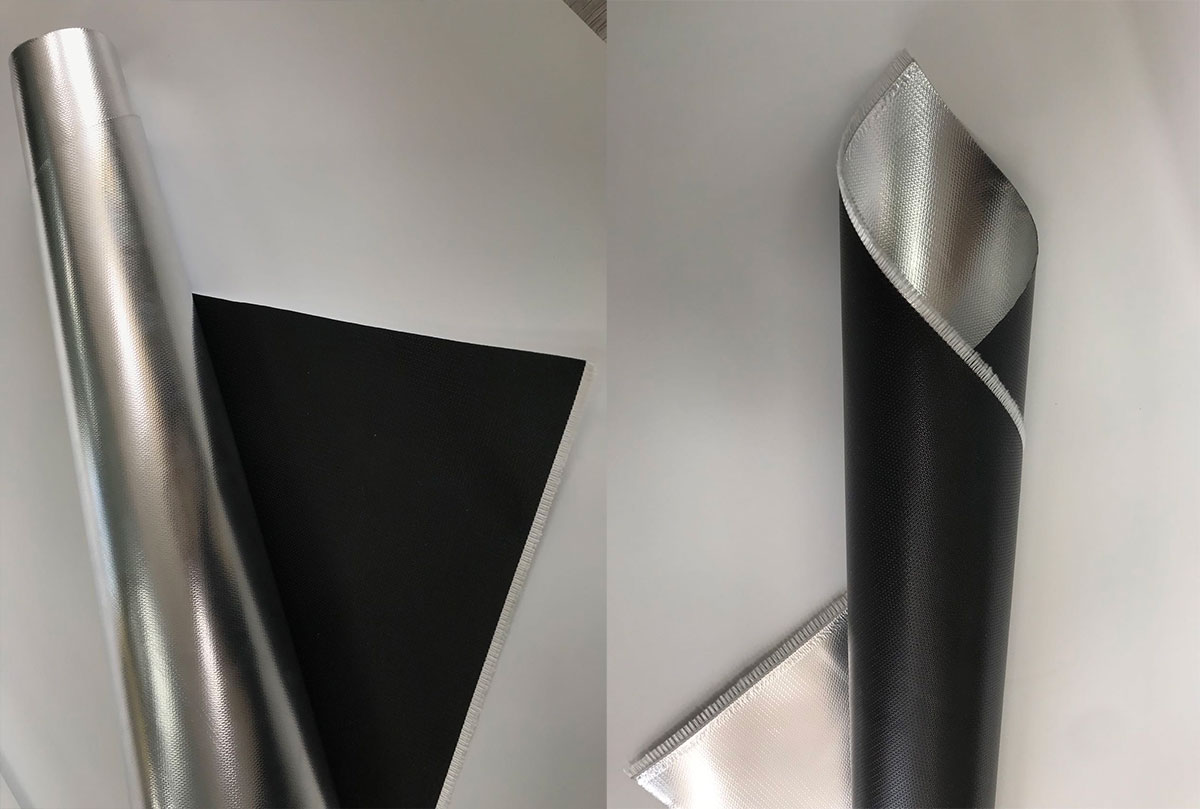

RUISHUN Aluminum Foil Silicone Double-Sided Fiberglass Fabric is a high-performance composite material designed for advanced thermal insulation and industrial protection. It combines the durability of fiberglass cloth with the heat-reflective properties of aluminum foil and the flexibility of silicone rubber.
This double-sided composite structure significantly enhances fire resistance, mechanical strength, and long-term durability, making it ideal for demanding applications in industrial machinery, electronics, automotive, and oilfield environments.
Dual protection: aluminum foil + silicone coating on both sides
Excellent heat resistance for continuous high-temperature environments
High tensile and tear strength due to reinforced fiberglass base
Superior thermal reflection from aluminum foil
Flame retardant, waterproof, and chemical resistant surface
Abrasion-resistant silicone layer for long service life
Stable performance under mechanical stress and harsh environments
Low smoke & non-toxic during exposure to heat
This composite fabric uses a three-layer integrated structure:
Aluminum Foil Layer
Reflects up to 95% radiant heat and provides excellent fire shielding.
E-glass Fiberglass Cloth Base
Offers high tensile strength, dimensional stability, and inherent fire resistance.
Silicone Rubber Coating (Double-Sided)
Provides waterproofing, anti-aging, electrical insulation, and enhanced durability.
This multi-layer design ensures maximum heat protection and extended service life in industrial environments.
Operating temperature: 50°C to +260°C
Short-term temperature: up to 550°C radiant heat
Heat reflection rate: ≥ 95%
Flame retardancy: Self-extinguishing
Waterproof & oil-resistant
High chemical and corrosion resistance
Excellent insulation performance
Tear & abrasion resistant for industrial usage
| Specification | Value |
|---|---|
| Base Fabric | E-glass Fiberglass Cloth |
| Coating | Silicone Rubber (One Side or Two Sides Available) |
| Additional Layer | Aluminum Foil (One Side or Two Sides Available) |
| Thickness | 0.18mm – 1.2mm |
| Weight | 280–1200 g/m² |
| Width | 1000–1500 mm (customizable) |
| Temperature Resistance | -50°C to 260°C |
| Foil Type | Pure Aluminum / Reinforced Foil |
| Silicone Color | Silver / Gray / Red / Black (customizable) |
Specifications can be customized for large orders.
Aluminum foil thickness (standard or reinforced)
Silicone coating thickness (single / double)
Custom fabric thickness & weight
Custom width and roll length
Flame retardancy level customization (NFPA / EN standards)
Color options available
Logo printing on foil or silicone
RUISHUN supports OEM / ODM for global distributors.
This high-performance composite is widely used across industrial and engineering sectors.
Expansion joints
Thermal covers
Industrial pipe insulation
Boiler & furnace insulation
Heat-resistant curtains
Oil pipeline insulation
Fireproof covers
High-temperature lagging
Protective wraps for valves and flanges
High-voltage insulation
Fire-resistant cable wrapping
Electrical shielding
Engine compartment heat shields
Exhaust insulation wrapping
Battery thermal protection
EV pack insulation
Own factory with advanced coating & lamination lines supporting large-volume orders.
Strict QC system; fabric meets industrial testing standards.
Over 15 years of export experience with stable logistics support.
Direct industrial pricing for distributors, importers, and OEM factories.
Roll packaging with moisture-proof film
Palletized loading available for large shipments
OEM label and carton customization
Fast lead time: typically 7–15 days
Free samples available for distributors
Q1: What is the temperature resistance?
A: Continuous 260°C; short-term radiant heat up to 550°C.
Q2: Can you customize thickness or width?
A: Yes. RUISHUN supports full customization for large orders.
Q3: Do you offer free samples?
A: Yes, samples can be provided upon request.
Q4: Can this fabric be used outdoors?
A: Yes. The silicone coating provides excellent weather and UV resistance.
