Choosing the right fiberglass fabric specification is one of the most critical decisions in industrial design, composite manufacturing, electrical insulation, and high-temperature applications.

Whether you are producing:

• Fireproof blankets

• Silicone/PTFE coated fabrics

• PCB laminates (FR-4 / CCL)

• Expansion joints

• Thermal insulation jackets

• Industrial composite structures

…the performance of the final product depends heavily on three core parameters:

Weight (GSM), Thickness (mm), and Weave structure

A wrong selection can lead to coating failure, poor resin impregnation, weak mechanical strength, or even system-level failure in high-temperature environments.

This guide provides a complete engineering-level breakdown of fiberglass fabric selection.

Table of Contents

1. What Is Fiberglass Fabric?

2. Why Weight, Thickness, and Weave Matter

3. Fiberglass Fabric Classification Overview

4. Fiberglass Fabric Weight (GSM) Explained

5. Thickness vs Performance Relationship

6. Weave Types and Their Engineering Behavior

7. Electronic Grade Fiberglass Cloth (PCB Use)

8. Greige / Industrial Base Fabric

9. Coated Fiberglass Fabrics (Silicone / PTFE / PU)

10. Application-Based Selection Guide

11. Industry Use Cases by Fabric Type

12. Common Selection Mistakes

13. FAQ

14. Conclusion

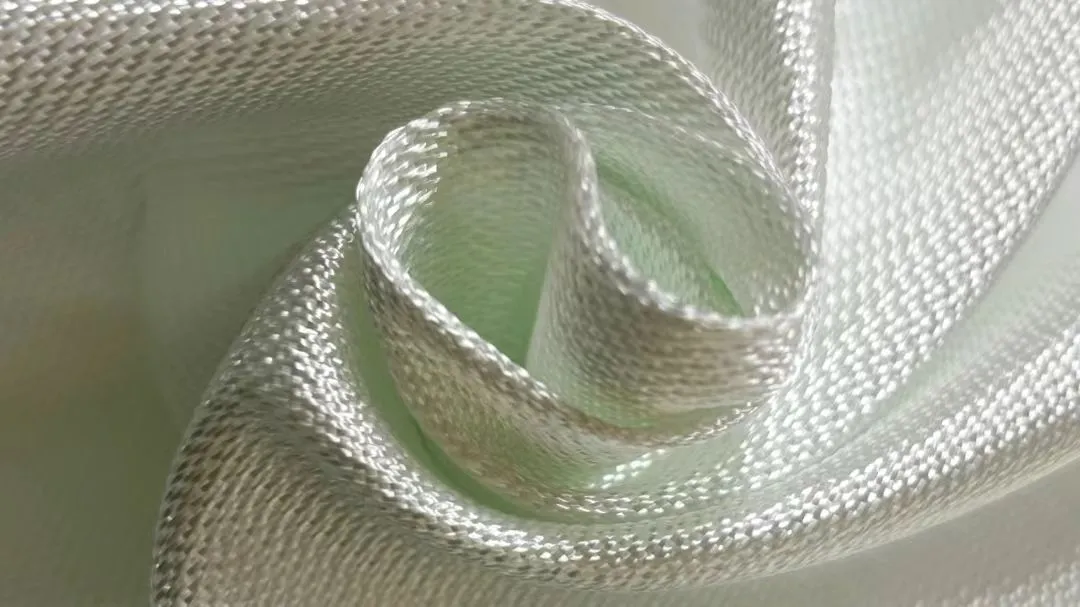

1. What Is Fiberglass Fabric?

Fiberglass fabric is a woven material made from continuous E-glass fiberglass yarns, designed for:

• High temperature resistance (up to ~550°C base fabric)

• Electrical insulation

• Mechanical reinforcement

• Chemical stability

• Dimensional stability under load

Industrial fiberglass fabrics are widely used as:

• Reinforcement base materials

• Electrical insulation layers

• Coated industrial fabrics

• Composite substrates

Typical industrial grades include 2116, 7628, 3732, 3784, 666, 3788 depending on weight and structure.

2. Why Weight, Thickness, and Weave Matter

These three parameters determine:

• Strength

• Flexibility

• Heat resistance performance stability

• Resin absorption capability

• Coating adhesion quality

• Final product durability

In simple terms:

GSM controls strength, thickness controls structure, weave controls behavior.

3. Fiberglass Fabric Classification Overview

Fiberglass fabrics are generally divided into three major categories:

1. Electronic Grade Fabric

Used in PCB and electrical laminates.

Examples:

• 2116 (lightweight ~105 gsm)

• 7628 (~200 gsm)

2. Industrial Greige Fabric (Base Cloth)

Used for coating and composites.

Examples:

• 3732 (~430 gsm)

• 3784 (~850 gsm)

3. Coated Fiberglass Fabric

Base fabric + functional coating:

• Silicone coated fiberglass

• PTFE coated fiberglass

• PU coated fiberglass

• Hypalon coated fiberglass

Used in:

• Fire protection

• Conveyor belts

• Chemical protection

• Waterproof systems

4. Fiberglass Fabric Weight (GSM) Explained

What is GSM?

GSM (grams per square meter) defines how much fiber is packed into 1m² fabric.

Higher GSM = more fiber = stronger but less flexible.

GSM Categories

Lightweight (30–200 gsm)

Typical products:

• 2116 electronic cloth (~105 gsm)

Applications:

• PCB laminates

• Electrical insulation

• Thin resin reinforcement

Medium Weight (200–600 gsm)

Examples:

• 7628 (~200 gsm)

• 3732 (~430 gsm)

Applications:

• FRP panels

• Composite shells

• Industrial insulation layers

Heavy Weight (600–1200 gsm)

Examples:

• 666 (~650 gsm)

• 3784 (~850 gsm)

Applications:

• Welding blankets

• Fire curtains

• Expansion joints

• Heavy insulation systems

Engineering Insight

• Low GSM → better drapability + resin flow

• High GSM → higher strength + durability

• Too high GSM → poor flexibility and coating difficulty

5. Thickness vs Performance Relationship

Thickness is influenced by yarn density and weave structure.

Typical thickness range

• 0.03 mm → ultra-thin electronic cloth

• 0.10–0.20 mm → PCB laminates

• 0.3–0.8 mm → industrial fabric

• 0.8–1.5 mm → heavy-duty insulation base

Key engineering rule

Thickness does NOT always equal strength.

A satin weave heavy fabric may feel thinner but be stronger than a thicker plain weave due to yarn structure.

6. Weave Types and Their Engineering Behavior

Weave determines how fiberglass behaves under stress, bending, and coating.

Plain Weave

Features:

• Highest stability

• Lowest drapability

• Strong interlocking structure

Best for:

• PCB laminates (7628, 2116)

• Flat insulation panels

Twill Weave

Features:

• Balanced strength and flexibility

• Better draping than plain weave

Best for:

• Automotive composites

• Curved industrial parts

Satin Weave

Features:

• Highest flexibility

• Smooth surface

• Excellent coating compatibility

Examples:

• 3732

• 3784

Best for:

• Silicone coated fabrics

• Fire blankets

• Expansion joints

7. Electronic Grade Fiberglass Cloth (PCB Use)

Electronic fiberglass fabric is the most precision-demanding category.

Examples:

2116 Fiberglass Cloth

• Weight: ~105 gsm

• Thickness: ~0.10 mm

7628 Fiberglass Cloth

• Weight: ~200 gsm

• Thickness: ~0.18 mm

Applications

• PCB (FR-4)

• Copper clad laminates (CCL)

• Prepreg systems

• Electrical insulation boards

Why weave matters here

• Uniform dielectric performance

• Resin impregnation consistency

• Controlled thickness stacking in multilayer boards

8. Greige Industrial Base Fabric

Greige fiberglass fabric is untreated or heat-cleaned base cloth used for coating.

Typical grades:

• 3732 (~430 gsm)

• 3784 (~850 gsm)

• 3788 (~1630 gsm)

Applications

• Silicone coated fiberglass fabric

• PTFE coated fabric

• PU coated fabric

• Vermiculite coated fabrics

• Aluminum foil laminated fabrics

9. Coated Fiberglass Fabrics

Coating transforms performance completely.

Silicone Coated Fiberglass

• Fire resistance

• Flexibility

• Heat resistance up to ~230°C

Used in:

• Welding blankets

• Fire curtains

• Insulation jackets

PTFE Coated Fiberglass

• Non-stick surface

• Chemical resistance

• Up to ~260°C

Used in:

• Conveyor belts

• Food processing

• Heat sealing machines

PU Coated Fiberglass

• Low cost

• Abrasion resistance

• Moderate temperature resistance

Used in:

• Protective covers

• Light industrial curtains

10. Application-Based Selection Guide

Fire Protection Systems

Best choice:

• Heavy satin weave (3784, 666)

• Silicone coating

Electrical / PCB Industry

Best choice:

• Plain weave

• 2116 / 7628 electronic cloth

Food Processing Conveyor

Best choice:

• PTFE coated open mesh fabric

Chemical Protection

Best choice:

• PTFE or Hypalon coated fabrics

Welding & Heat Shields

Best choice:

• High GSM satin weave + silicone coating

11. Industry Use Cases by Fabric Type

12. Common Selection Mistakes

❌ Mistake 1: Choosing by weight only

Thickness and weave are equally important.

❌ Mistake 2: Using plain weave for coating-heavy products

Poor drapability reduces coating quality.

❌ Mistake 3: Using PCB fabric for insulation blankets

Electronic cloth is not designed for thermal shock environments.

❌ Mistake 4: Ignoring resin compatibility

Not all fiberglass works with all resins.

13. FAQ

What is the most common fiberglass fabric for industrial coating?

Satin weave fabrics like 3732 and 3784 are most widely used.

What is the strongest fiberglass fabric?

Higher GSM satin weave fabrics like 3788 or woven roving structures.

What is the thinnest fiberglass fabric?

Electronic grade fabrics like 2116 (~0.10 mm thickness).

Which weave is best for coating?

Satin weave is best due to smooth surface and flexibility.

14. Conclusion

Selecting fiberglass fabric is not just about picking a “thicker” or “stronger” material—it is about understanding the relationship between weight, thickness, and weave structure.

• GSM defines strength potential

• Thickness defines structural behavior

• Weave defines flexibility and application suitability

When these three parameters are matched correctly with the application—whether PCB manufacturing, fire protection, insulation systems, or chemical environments—the performance of the final product becomes stable, efficient, and long-lasting.

For industrial buyers and engineers, mastering these selection principles is essential for reducing failure rates and improving system reliability.
