100 M²
ISO9000，CE,EN13501,SGS,etc
0.3mm,0.7mm ,1.0mm,1.3mm(customizable)
Yellow
7-15 days
A Grade
92cm,100cm,130cm(customizable)
Product Description

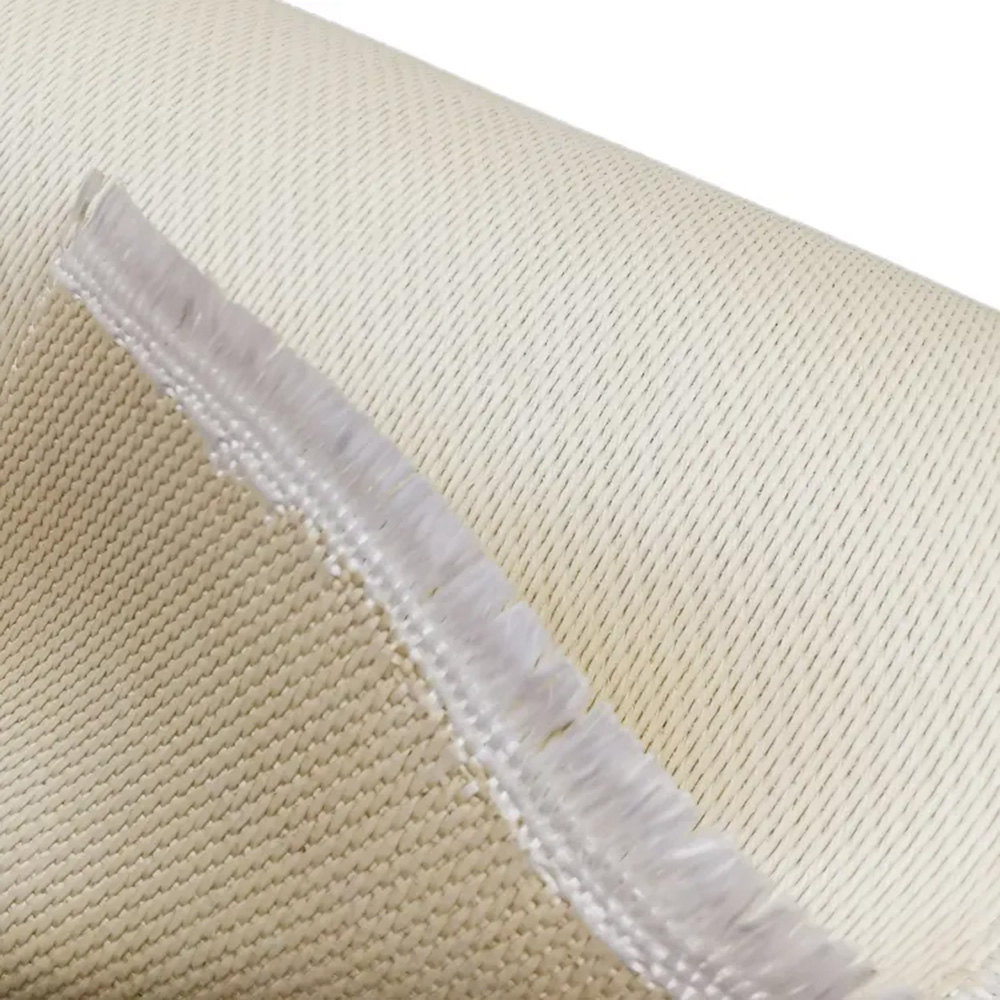

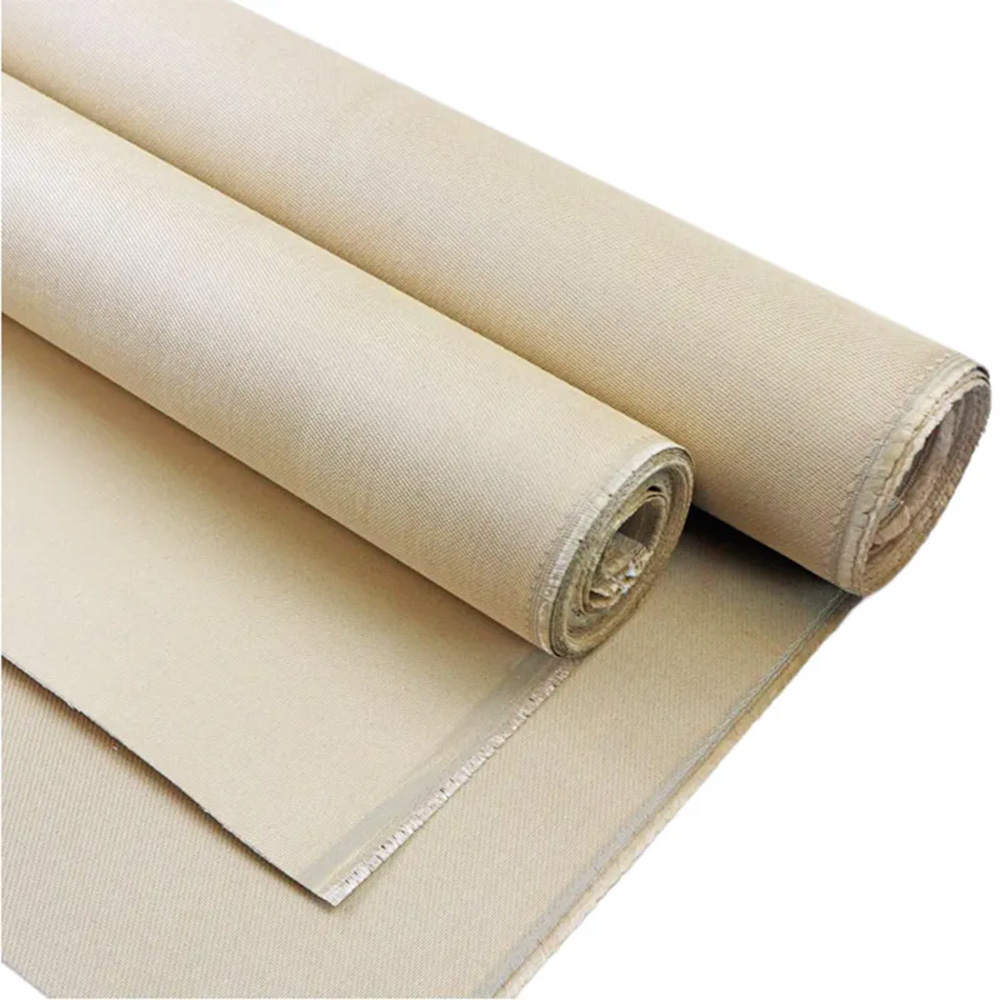

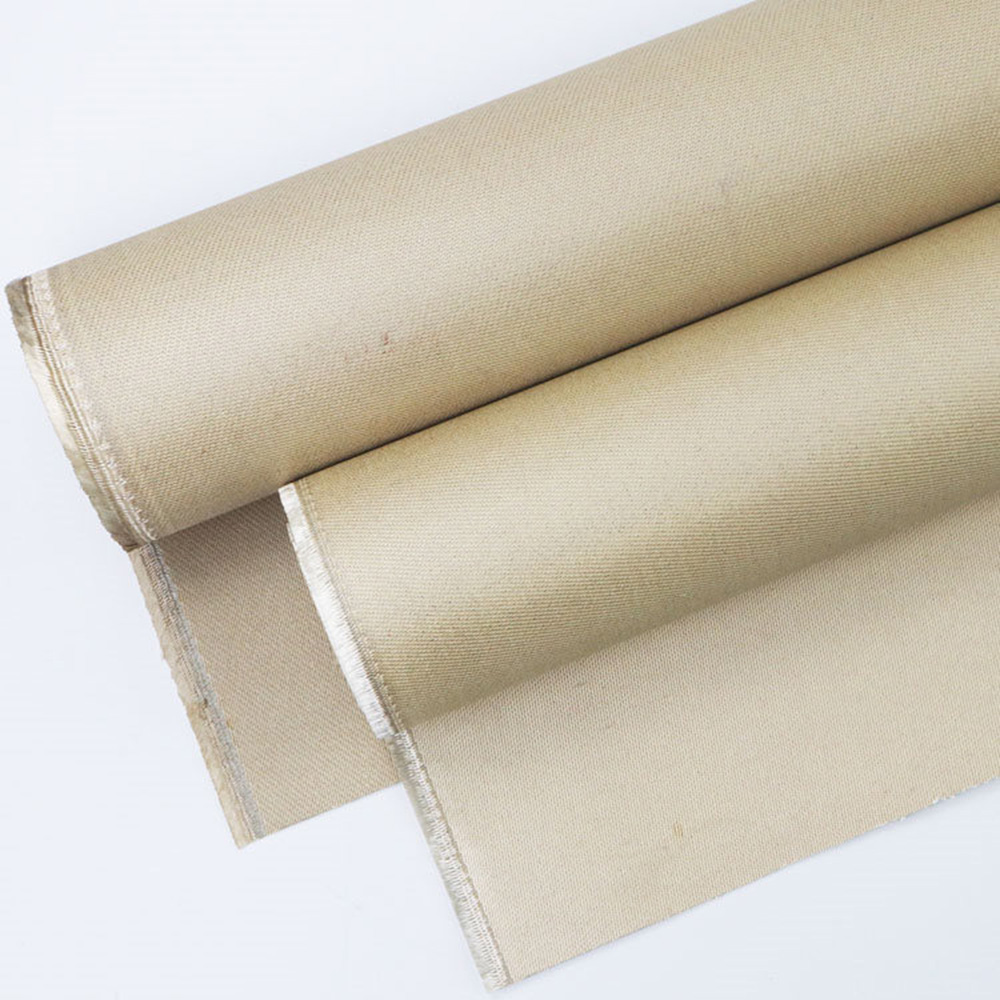

RUISHUN Vermiculite Coated High Silica Fiberglass Fabric is an industrial high-temperature fabric made from high-silica fiberglass cloth with a vermiculite coating. It is designed for welding protection, foundry insulation, molten metal splash resistance, furnace insulation, fire curtains, and other demanding thermal protection applications.
The high-silica base fabric provides excellent heat resistance, while the vermiculite coating improves abrasion resistance, flame resistance, moisture protection, and surface durability. This makes the fabric suitable for continuous high-temperature environments and harsh industrial working conditions.
Vermiculite coated high silica fiberglass fabric is a flexible woven thermal protection material. The base cloth is made from high-silica fiberglass with SiO₂ content typically above 96%, and the surface is treated with vermiculite coating to improve heat reflection, molten splash protection, and working durability.
Compared with standard fiberglass fabric, this fabric performs better in high-temperature insulation, welding splash protection, furnace lining, fireproof curtains, and industrial safety applications where both heat resistance and flexibility are required.
| Property | Unit | Typical / Custom Options |
|---|---|---|
| Base Fabric | — | High-Silica Fiberglass Fabric, SiO₂ ≥ 96% |
| Coating | — | Vermiculite Coating |
| Weight | g/m² | 350 – 1400, customizable |
| Thickness | mm | 0.35 – 1.35, depending on specification |
| Weave Type | — | 8-Harness Satin, 12-Harness Satin, other satin weaves |
| Roll Width | mm | 920 / 1000 / 1300 or customized |
| Long-Term Service Temperature | °C | Approximately 1000°C |
| Coating Working Temperature | °C | Approximately 810°C continuous, short-term up to 1090°C |
| Silica Fiber Softening Point | °C | Approximately 1700°C |
| Color | — | Yellow / Golden, may vary by coating |
The high-silica fiberglass base fabric can withstand continuous high-temperature exposure and provides reliable thermal protection for industrial insulation, welding, foundry, and furnace environments.
The vermiculite coating creates a protective surface barrier that helps resist flame contact, radiant heat, and molten metal splash, making it suitable for welding blankets, fire curtains, and foundry protection systems.
Compared with untreated high-silica fiberglass fabric, the coated surface improves abrasion resistance, handling durability, and working life in demanding industrial applications.
The fabric remains flexible and easy to cut, sew, wrap, and fabricate into welding blankets, removable insulation covers, pipe protection layers, furnace curtains, and customized heat protection products.
RUISHUN supports custom weight, thickness, width, roll length, coating type, double-sided coating, and packaging solutions for bulk industrial orders and OEM projects.
Welding blankets and welding curtains
Foundry molten metal splash protection
Furnace insulation and thermal barriers
Fireproof curtains and fire safety barriers
Industrial pipe wrapping and equipment protection
High-temperature removable insulation covers
Outdoor or harsh-environment heat insulation
RUISHUN supplies high-temperature fiberglass and silica fabric materials for industrial insulation, fire protection, welding safety, and thermal management applications. Our vermiculite coated high silica fiberglass fabric is available in multiple specifications to meet different project requirements.
High-silica fabric with excellent heat resistance
Vermiculite coating for enhanced thermal and splash protection
Customizable weight, width, thickness, and roll length
Suitable for welding, foundry, furnace, and insulation applications
Bulk order, OEM, and project-based customization supported
Export packaging available for international delivery
Packaging: Each roll is wrapped with moisture-proof protective film and packed in reinforced cartons. Palletized packaging is available for bulk orders.
Delivery: Standard and customized roll widths such as 920 mm, 1000 mm, and 1270 mm are available. FOB, CIF, and EXW shipping terms can be supported.
Sample Service: Samples can be provided for testing before bulk orders. Custom specifications can be arranged based on application, temperature requirement, and processing method.
OEM / ODM Service: Custom weight, thickness, coating, color, roll size, and packaging are available for distributors, industrial suppliers, and project contractors.
The fabric can work at continuous temperatures up to approximately 1000°C. The vermiculite coating can withstand approximately 810°C continuous working temperature, with short-term exposure up to approximately 1090°C.
Yes. Vermiculite coated high silica fiberglass fabric is widely used for welding blankets, fire curtains, foundry splash protection, and other high-temperature safety barriers.
Yes. RUISHUN can customize fabric weight, thickness, width, roll length, weave type, coating type, and packaging according to project requirements.
Yes. Although it is designed for high-temperature resistance, the fabric remains flexible and can be cut, sewn, wrapped, or fabricated into different thermal protection products.
Yes. Vermiculite is a natural inorganic material, and the fabric is asbestos-free, making it suitable for industrial safety and thermal insulation applications.
Yes. Samples are available for testing. Sample cost and shipping cost depend on the destination and required specification.
Each roll is wrapped with moisture-proof protective film and packed in reinforced cartons. Pallet packing can be arranged for bulk export orders.
RUISHUN supports industrial customers with quality-controlled high-temperature fabric products and related certification documents upon request.
RUISHUN participates in global exhibitions and serves international customers in welding protection, fireproof fabric, fiberglass insulation, and high-temperature material industries.
Contact RUISHUN to get pricing, samples, technical data, and customized specifications for vermiculite coated high silica fiberglass fabric. Please share your required weight, thickness, width, roll length, application, and working temperature so our team can recommend the most suitable solution.
