2116
100 M²
ISO9000，CE,EN13501,SGS,etc
0.09–0.10 mm
White
7-15 days
A Grade
1270mm
105–115 g/m²
Product Description

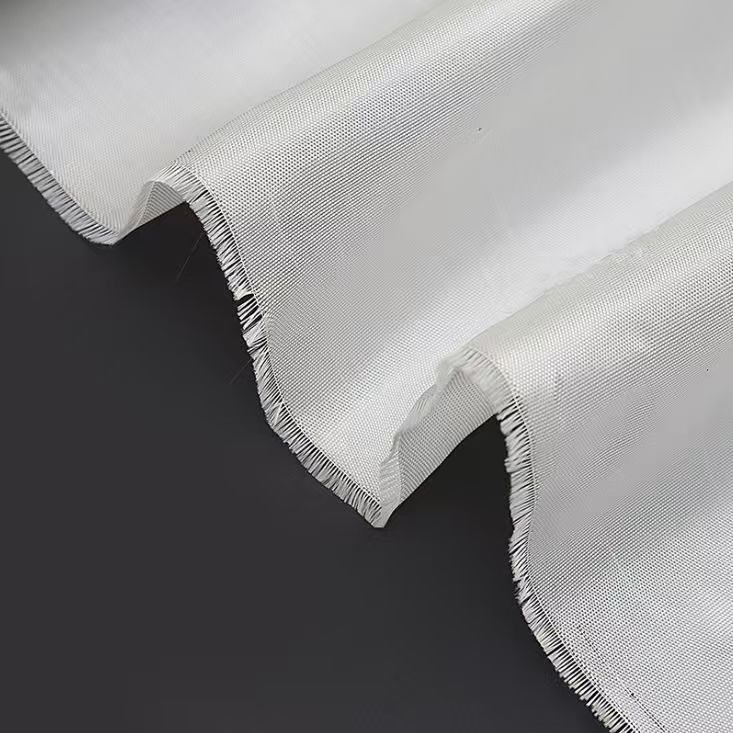

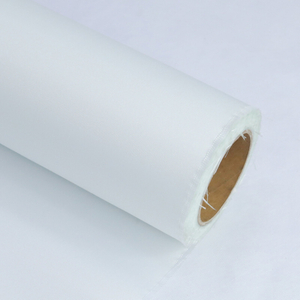

RUISHUN 2116 Electronic Fiberglass Fabric is a lightweight electronic-grade E-glass woven cloth designed for PCB laminates, copper clad laminates, FR-4 boards, prepreg manufacturing, multilayer PCB production, and electrical insulation composites.
Made from high-purity continuous E-glass filament yarn and woven in a precise plain weave structure, 2116 fiberglass cloth provides stable thickness, excellent dielectric performance, good resin impregnation, high tensile strength, and dimensional stability during lamination.
As a 2116 electronic fiberglass fabric manufacturer and factory supplier, RUISHUN supports PCB material producers, CCL manufacturers, prepreg factories, insulation board manufacturers, and electronic composite material suppliers with stable quality, customized specifications, and long-term bulk supply.
| Product Name | 2116 Electronic Fiberglass Fabric / 2116 E-Glass Cloth |
| Fabric Style | 2116 |
| Material | Electronic-grade E-glass Fiberglass Yarn |
| Weave Type | Plain Weave |
| Typical Weight | 105–115 g/m² |
| Typical Thickness | 0.09–0.10 mm |
| Main Applications | PCB Laminates, CCL, FR-4 Boards, Prepregs, Multilayer PCB, Electrical Insulation Boards |
2116 fiberglass fabric is an electronic-grade E-glass cloth commonly used as reinforcement material in printed circuit board laminates and copper clad laminates. It offers a balanced combination of lightweight structure, mechanical strength, resin wet-out performance, and electrical insulation properties.
Compared with lighter fiberglass styles such as 106 and 1080, and heavier styles such as 7628, 2116 fiberglass cloth provides a practical middle-weight solution for multilayer PCB manufacturing, FR-4 laminates, prepreg production, and electronic insulation composites.
Stable laminate thickness: Uniform yarn distribution and plain weave structure help maintain consistent laminate build-up.
Good dielectric performance: Electronic-grade E-glass fabric supports reliable insulation and signal performance in PCB materials.
Excellent resin impregnation: Suitable for epoxy, phenolic, PTFE, silicone, and other resin systems used in electronic composites.
Dimensional stability: Helps reduce deformation during high-temperature and high-pressure lamination.
Balanced fabric weight: Suitable for FR-4 boards, CCL, prepregs, and multilayer PCB applications requiring medium reinforcement.
Electronic-grade E-glass material: Provides high electrical insulation, low dielectric loss, and stable performance for PCB laminate production.
Uniform plain weave: Smooth surface, even thickness, consistent yarn spacing, and good fabric stability.
Excellent resin compatibility: Suitable for epoxy resin, phenolic resin, PTFE resin, silicone resin, and other composite systems.
High tensile strength: Maintains mechanical integrity during prepreg processing and laminate pressing.
Thermal stability: E-glass fabric can withstand high-temperature processing environments.
Low moisture absorption: Helps improve long-term electrical reliability of finished laminates.
Customizable supply: Width, roll length, surface treatment, packing, and technical parameters can be adjusted for project requirements.

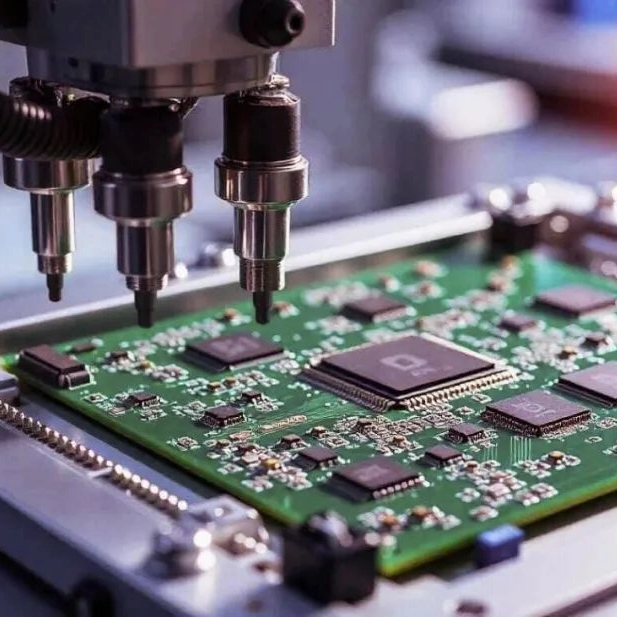

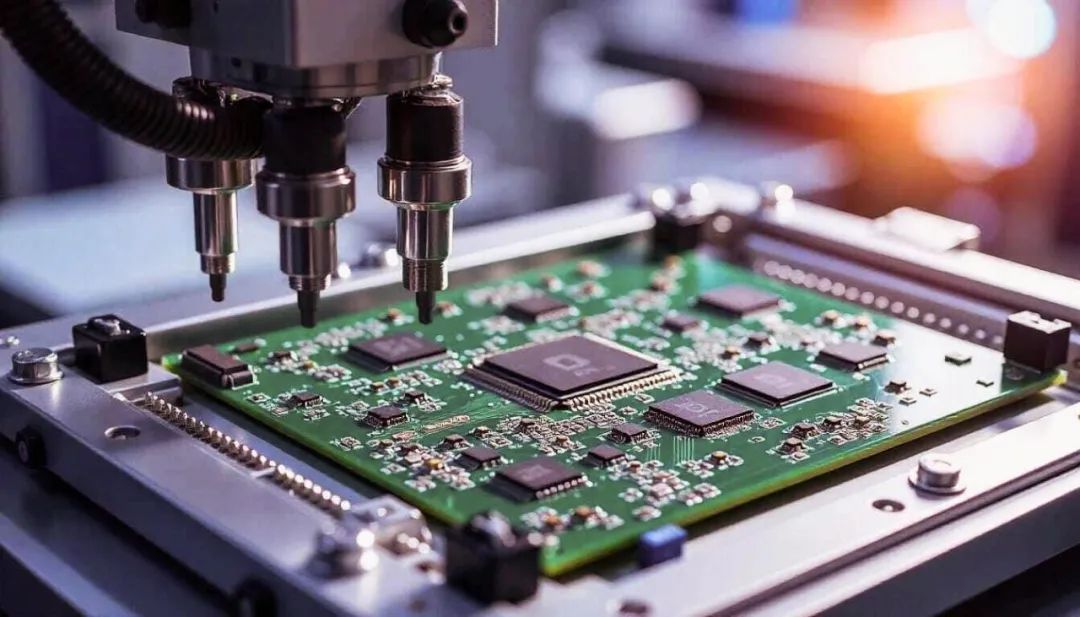

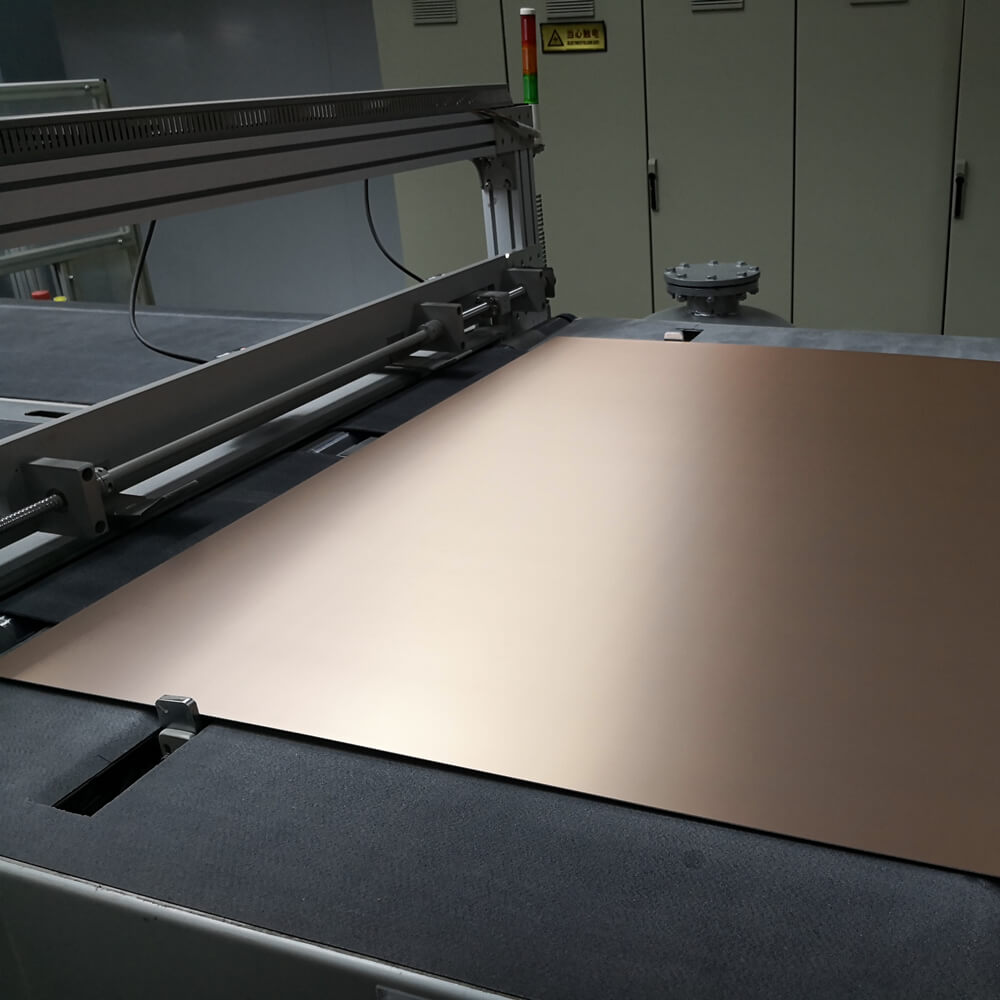

FR-4 PCB laminates
Copper clad laminates, also known as CCL
Prepreg manufacturing
Multilayer printed circuit boards
Electrical insulation sheets and insulation boards
Electronic composite reinforcement materials
High-performance resin-reinforced laminates
| Property | Typical Specification |
|---|---|
| Fabric Style | 2116 |
| Material | Electronic-grade E-glass |
| Weave Style | Plain Weave |
| Areal Weight | 105–115 g/m² |
| Thickness | 0.09–0.10 mm |
| Yarn Type | Continuous Electronic-grade Fiberglass Yarn |
| Surface Treatment | Silane Finish or Customized Surface Treatment |
| Resin Compatibility | Epoxy / Phenolic / PTFE / Silicone Resin Systems |
| Heat Resistance | Up to Approx. 550°C for Fiberglass Base Fabric |
| Standard Width | Customizable According to Production and Application Requirements |
| Roll Length | Customizable |
| Supply Form | Roll Goods with Protective Packing |
Note: Technical parameters can be adjusted according to PCB laminate, prepreg, CCL, or electrical insulation manufacturing requirements.
| Fabric Style | General Characteristic | Typical Use |
|---|---|---|
| 106 / 1080 | Lighter and Thinner Electronic Fiberglass Cloth | Thin Laminates and Lightweight PCB Layers |
| 2116 | Balanced Thickness, Strength, and Resin Impregnation | FR-4, CCL, Prepreg, Multilayer PCB Laminates |

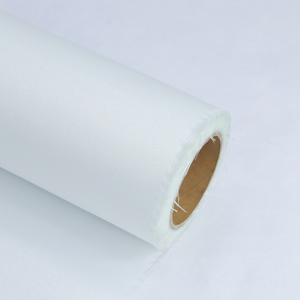

| 7628 | Heavier Fiberglass Fabric with Higher Reinforcement | Thicker Laminates and Structural Electrical Insulation Boards |
Choosing RUISHUN means working with a reliable fiberglass fabric factory focused on stable quality, process control, and long-term supply for electronic material manufacturers.
Direct manufacturer: Stable production capacity for electronic fiberglass fabric.
Strict quality control: Inspection of yarn, weave density, thickness, weight, surface quality, and roll packing.
Consistent batch quality: Suitable for long-term PCB, prepreg, and CCL production programs.
Custom specification support: Width, roll length, surface treatment, and packing can be customized.
Export experience: Moisture-proof packing, palletized shipment, labeling, and international logistics support.
Technical support: Material selection guidance for PCB laminate, insulation board, and composite applications.
Electronic-grade fiberglass yarn inspection
Fabric weight and thickness control
Weave density and surface uniformity inspection
Tensile strength and dimensional stability testing
Heat resistance evaluation
Roll length, width, appearance, and packaging inspection
RoHS / REACH compliant materials available upon request

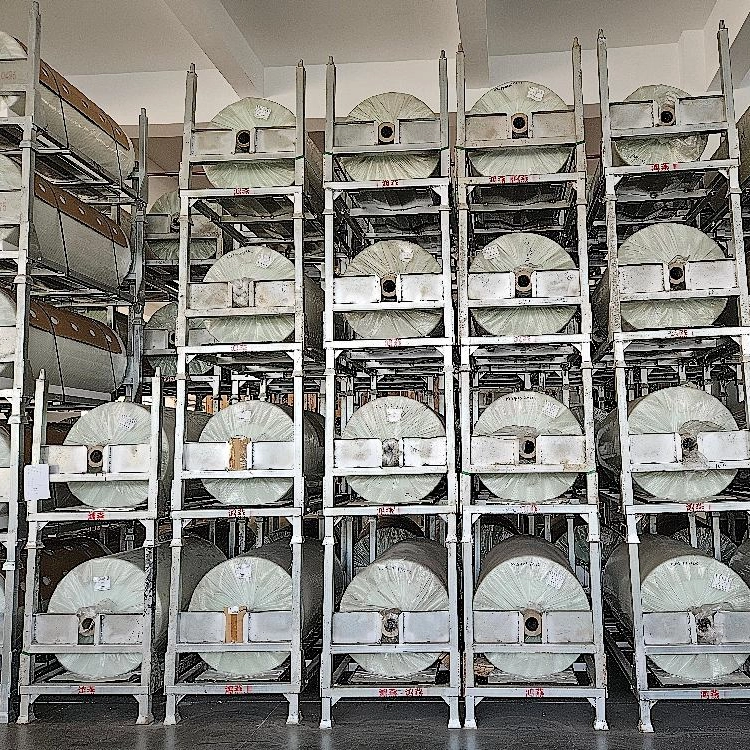

Each roll is wrapped with moisture-proof protective film to reduce contamination and damage during transport.
Carton, pallet, and reinforced export packing are available for bulk shipments.
Custom labels, roll marks, carton marks, and OEM packaging can be provided for distributors and industrial buyers.
Lead time is usually 7–15 days depending on quantity, specification, and customization requirements.
Samples are available for qualified B2B customers for resin compatibility testing, laminate evaluation, and production trial.
2116 electronic fiberglass fabric is a medium-weight E-glass woven cloth used as reinforcement material for PCB laminates, copper clad laminates, prepregs, FR-4 boards, and electrical insulation composites.
It is mainly used in FR-4 PCB laminates, CCL production, prepreg manufacturing, multilayer PCB boards, electrical insulation boards, and resin-reinforced electronic composite materials.
RUISHUN 2116 fiberglass fabric is suitable for epoxy, phenolic, PTFE, silicone, and other resin systems used in electronic laminates and insulation composites.
Yes. Width, roll length, packing method, surface treatment, and other technical parameters can be customized according to customer production requirements.
Yes. Samples are available for qualified B2B customers to test resin impregnation, laminate performance, dimensional stability, and compatibility with production processes.
RUISHUN is a fiberglass fabric manufacturer supplying electronic fiberglass cloth, industrial fiberglass fabric, coated fiberglass fabric, and customized fiberglass materials for global B2B customers.
Please provide the required fabric style, width, roll length, quantity, surface treatment, packing requirement, application, and destination port. RUISHUN will recommend the suitable specification and provide factory-direct pricing.
