Smart Fiberglass Solutions Contact Us Now
100M
ISO9000，CE,EN13501,SGS,etc
0.01– 0.2mm(customizable)
White
7-15 days
A Grade
1270mm
Product Description

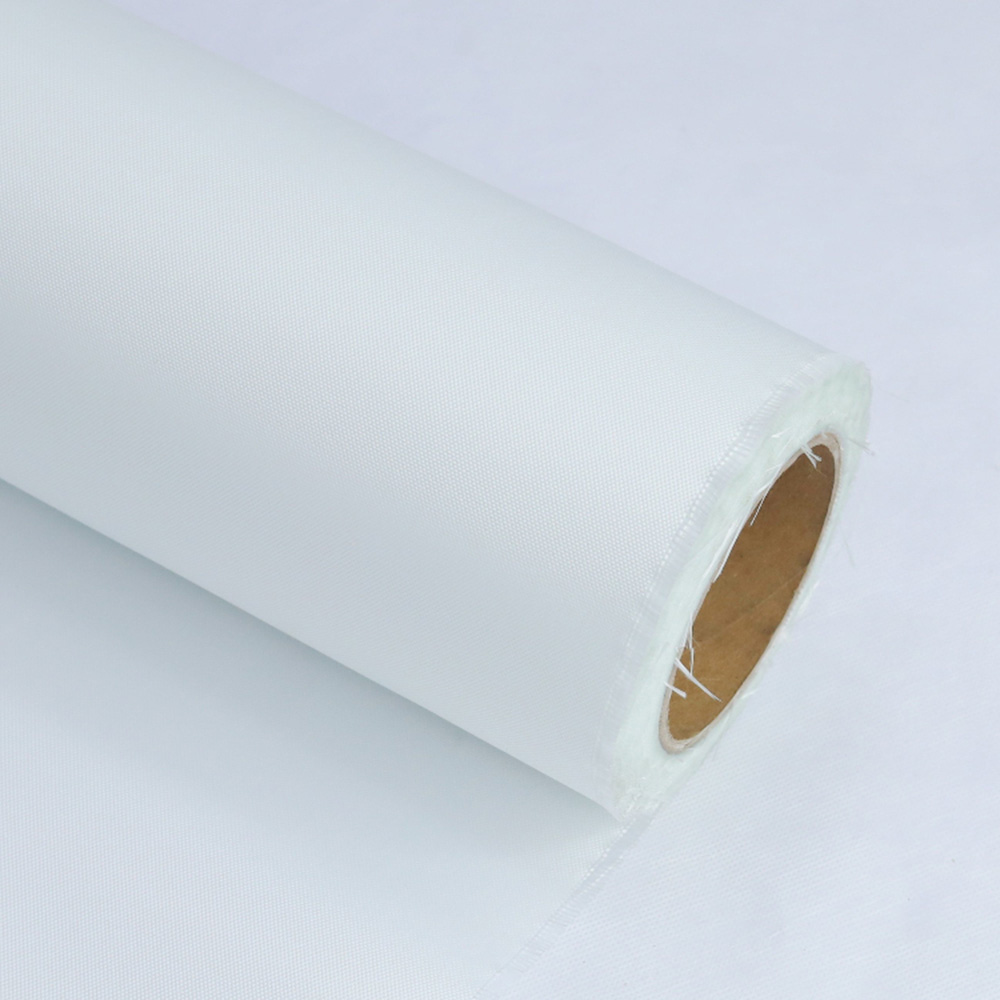

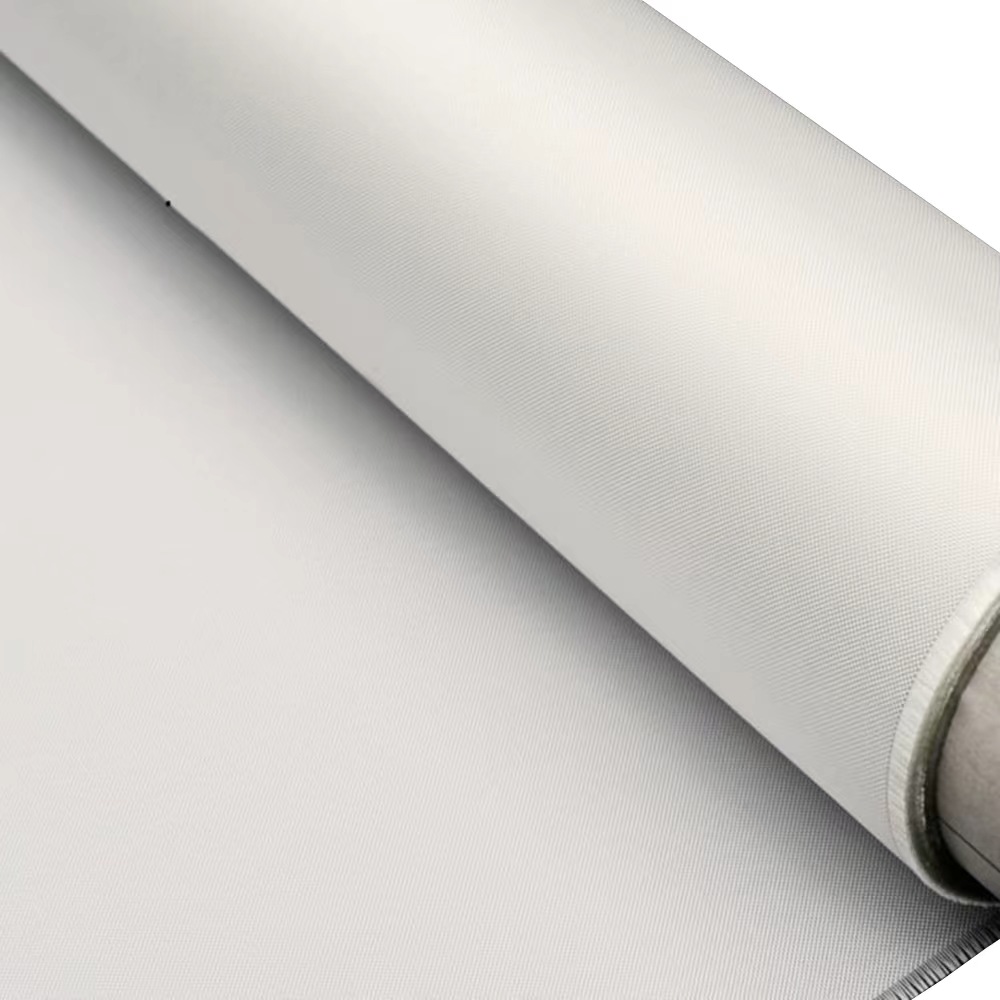

RUISHUN Electronic Fiberglass Cloth is a high-performance E-glass fiberglass fabric engineered for PCB manufacturing, copper clad laminates, electrical insulation, electronics manufacturing, transformers, motors, and industrial insulation applications.
Made from premium E-glass fibers, this electronic-grade fiberglass cloth provides excellent dielectric strength, heat resistance, mechanical durability, dimensional stability, and resin compatibility. RUISHUN supplies common models such as 1080, 2116, and 7628, as well as many other custom electronic fiberglass cloth specifications.
As a fiberglass fabric source manufacturer, RUISHUN supports custom thickness, width, fiber density, surface treatment, roll length, packaging, and OEM bulk supply for PCB material manufacturers, CCL producers, electronics factories, insulation product suppliers, and industrial buyers.
Electronic fiberglass cloth is a thin, lightweight, and tightly woven E-glass fabric used as a reinforcing and insulating base material in electronic and electrical applications. It is commonly impregnated with epoxy resin to produce PCB laminates, copper clad laminates, FR4 boards, insulation sheets, and other electrical insulation materials.
Compared with general industrial fiberglass fabric, electronic-grade fiberglass cloth requires more precise thickness control, fiber density, surface treatment, dielectric performance, and resin impregnation stability.
Electronic fiberglass cloth provides excellent dielectric strength, helping protect electronic components, PCB layers, transformers, motors, and insulation systems from short circuits and electrical failure.
The E-glass fiber structure supports heat resistance up to 550°C, making the fabric suitable for demanding electronic, electrical, and industrial environments.
The fabric is thin, lightweight, and easy to cut, handle, laminate, impregnate, and integrate into PCB, CCL, transformer, motor, and insulation applications.
Pre-bonded, heat-set, and silane-treated surface options support strong bonding with epoxy and other resin systems for stable lamination and electrical insulation performance.
RUISHUN supplies standard reference models such as 1080, 2116, and 7628, while also offering many other electronic-grade fiberglass cloth models for different thickness, density, strength, and PCB laminate requirements.
| Parameter | Specification |
|---|---|
| Product Name | Electronic Fiberglass Cloth / Electronic Grade E-Glass Fabric |
| Material | High-quality E-glass fiberglass |
| Standard Models | 1080 / 2116 / 7628 basic models |
| Additional Models | Other electronic-grade fiberglass cloth models available |
| Thickness | 0.01 mm – 0.3 mm, customizable |
| Width | 1000 mm – 1500 mm, customizable |
| Heat Resistance | Up to 550°C |
| Electrical Insulation | Excellent dielectric strength |
| Color | White / Natural |
| Surface Treatment | Pre-bonded / Heat-set / Silane-treated |
| Brand | RUISHUN |
Thickness, width, fiber density, surface treatment, roll length, and model selection can be customized according to PCB, CCL, transformer, motor, or industrial insulation requirements.
| Model | Main Characteristics | Typical Applications |
|---|---|---|
| 1080 | Fine fiber, lightweight, thin structure | Thin multilayer PCBs and small electronic insulation |
| 2116 | Medium fiber, balanced mechanical strength and electrical insulation | Medium-thickness PCBs, transformers, and insulation layers |
| 7628 | Coarser fiber, dense weave, high-strength structure | Thick PCBs, heavy-duty transformers, CCL, and industrial insulation layers |
1080, 2116, and 7628 are basic reference models. RUISHUN can also provide many other electronic-grade fiberglass cloth specifications customized by thickness, width, surface treatment, fiber density, and application requirements.
Printed circuit boards, including multilayer and single-layer PCBs
Copper clad laminates and FR4 boards
Transformer insulation layers
Motor winding insulation
Electrical component liners
Electronic component protection
High-temperature electrical insulation materials
Industrial heat protection covers and liners
Resin-impregnated insulation sheets and laminated materials
Choose finer and lighter electronic fiberglass cloth such as 1080 or similar thin models when low thickness, smooth lamination, and precise layer control are required.
Choose 2116 or equivalent medium-weight electronic fiberglass cloth when balanced mechanical strength, electrical insulation, resin impregnation, and thickness control are needed.
Choose 7628 or other dense electronic-grade fiberglass cloth models when higher mechanical strength and thicker insulation structures are required.
RUISHUN has experience manufacturing both basic and advanced electronic fiberglass cloth models for PCB, CCL, transformers, motors, and industrial insulation applications.
Each batch can be checked through electrical testing, thickness control, heat resistance testing, surface inspection, and roll quality inspection to support stable industrial use.
Width, thickness, fiber density, surface treatment, roll length, and model selection can be tailored to specific PCB lamination, resin impregnation, and insulation requirements.
RUISHUN provides stable production, consistent quality, on-time delivery, and technical support for resin systems, PCB lamination, and electrical insulation applications.
No. These are basic reference models. RUISHUN provides many other electronic-grade fiberglass cloth models with customizable thickness, width, fiber density, and surface treatment.
Electronic fiberglass cloth is used for PCB base materials, copper clad laminates, FR4 boards, electrical insulation, heat protection, transformers, motors, and electronic component protection.
Yes. RUISHUN electronic fiberglass cloth can resist temperatures up to 550°C, making it suitable for high-heat electronic, electrical, and industrial environments.
Yes. RUISHUN offers customized width, thickness, fiber density, surface treatment, model selection, and roll length according to project requirements.
Yes. Pre-bonded, heat-set, and silane-treated surface options can support strong bonding with epoxy and other resin systems for PCB and insulation laminate production.
Yes. Samples are available for testing and evaluation before purchase, helping customers confirm thickness, model, surface treatment, and resin compatibility.
Contact RUISHUN with your required model, thickness, width, surface treatment, fiber density, resin system, application, and order quantity. Our team can recommend a suitable electronic fiberglass cloth specification for PCB, CCL, transformer, motor, electrical insulation, or OEM industrial production.
