Product Description

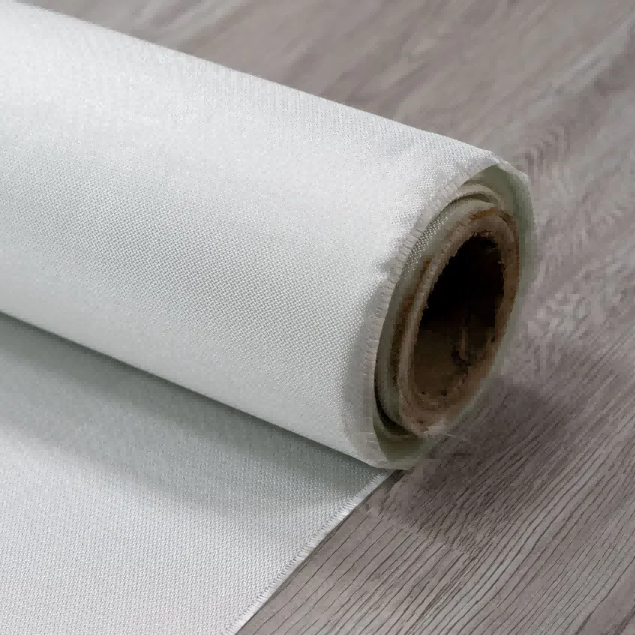

RUISHUN® 3732 fiberglass cloth is a heavy-duty E-glass woven fabric designed for industrial fire protection, welding blankets, fire curtains, thermal insulation covers, heat shields, removable insulation jackets, and coated fiberglass materials.

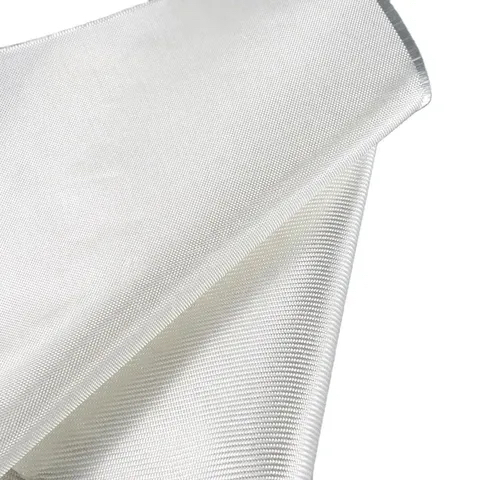

Made from high-quality E-glass fiberglass yarns and woven in a dense twill or satin structure, 3732 fiberglass fabric provides excellent flame resistance, high-temperature stability, tensile strength, tear resistance, flexibility, and fabrication performance.
As a fiberglass fabric manufacturer and factory-direct supplier, RUISHUN provides 3732 fiberglass cloth with stable quality, custom width, roll length, surface treatment, coating options, OEM packaging, and long-term B2B supply support.
| Product Name | 3732 Fiberglass Cloth / 3732 E-Glass Fabric / Industrial Fireproof Fiberglass Fabric |
| Material | E-glass fiberglass yarn |
| Weave Type | Twill weave / satin weave |
| Typical Weight | Approx. 430 g/m² |
| Typical Thickness | Approx. 0.40 – 0.43 mm |
| Temperature Resistance | Continuous use up to approx. 550°C; short-term exposure up to approx. 700°C |
| Main Applications | Welding blankets, fire blankets, fire curtains, insulation covers, heat shields, fire barriers, coated fiberglass fabric |
3732 fiberglass cloth is a medium-to-heavy weight industrial E-glass fabric used for fire protection, heat insulation, welding protection, and coated fabric production. Its dense woven structure helps provide stable strength and effective heat shielding in demanding industrial environments.
Compared with lighter fiberglass fabrics, 3732 offers better durability and protection for welding blankets, fireproof curtains, thermal insulation systems, and industrial safety covers. It can also be coated with silicone, vermiculite, acrylic, PU, PTFE, or laminated with aluminum foil for enhanced performance.
Non-combustible fiberglass material: E-glass fiberglass does not support combustion, making it suitable for fire protection systems.
High temperature resistance: Continuous working temperature up to approx. 550°C and short-term exposure up to approx. 700°C.
Strong and durable construction: Approx. 430 g/m² fabric weight provides good tensile strength, tear resistance, and long service life.
Excellent thermal insulation: Helps reduce heat transfer and protect equipment, work areas, and personnel.
Chemical and corrosion resistance: Suitable for many industrial environments exposed to oils, mild acids, alkalis, and chemicals.
Flexible and easy to fabricate: Can be cut, sewn, coated, laminated, and processed into finished fireproof products.
Ideal coating substrate: Compatible with silicone, vermiculite, acrylic, PU, PTFE, graphite, and aluminum foil lamination.
RUISHUN 3732 fiberglass cloth is widely used in industrial fire prevention, thermal protection, and high-temperature insulation systems.
Welding blankets, fire blankets, and spark protection covers
Fire curtains, fire barriers, and smoke barriers
Thermal insulation jackets and removable insulation covers
Heat shields and fireproof protective layers
Industrial furnace, boiler, and equipment protection
Fire-resistant partitions and industrial safety screens
Base fabric for silicone coated, vermiculite coated, acrylic coated, PU coated, PTFE coated, and aluminum foil laminated fiberglass materials
It provides protection against sparks, molten metal splash, radiant heat, flame exposure, and high-temperature surfaces in workshops, shipyards, power plants, metal fabrication facilities, and industrial maintenance environments.
| Item | Typical Specification |
|---|---|
| Product Name | 3732 fiberglass cloth |
| Material | E-glass fiberglass |
| Weave Type | Twill weave / satin weave |
| Fabric Weight | Approx. 430 g/m² |
| Thickness | Approx. 0.40 – 0.43 mm |
| Continuous Working Temperature | Up to approx. 550°C |
| Short-Term Heat Resistance | Up to approx. 700°C depending on exposure conditions |
| Standard Width | 1000 mm / 1270 mm, custom width available |
| Roll Length | 50 m / 100 m, custom roll length available |
| Surface Finish | Plain, heat cleaned, or coating-ready finish |
| Coating Options | Silicone, vermiculite, acrylic, PU, PTFE, graphite, aluminum foil |
Note: Customized specifications are available according to application, coating requirement, roll size, and project order quantity.
| Coated Version | Main Advantages | Typical Use |
|---|---|---|
| Silicone Coated 3732 Fiberglass Cloth | Abrasion resistance, waterproof surface, flexibility, spark resistance | Welding blankets, fire curtains, insulation covers |
| Vermiculite Coated 3732 Fiberglass Cloth | Improved resistance to sparks and molten metal splash | Heavy-duty welding, foundry, metalworking, shipbuilding |
| Aluminum Foil Laminated 3732 Fiberglass Cloth | Radiant heat reflection and surface protection | Heat shields, insulation jackets, equipment covers |
| PTFE Coated 3732 Fiberglass Cloth | Non-stick surface, chemical resistance, low friction | Release sheets, conveyor belts, chemical-resistant barriers |

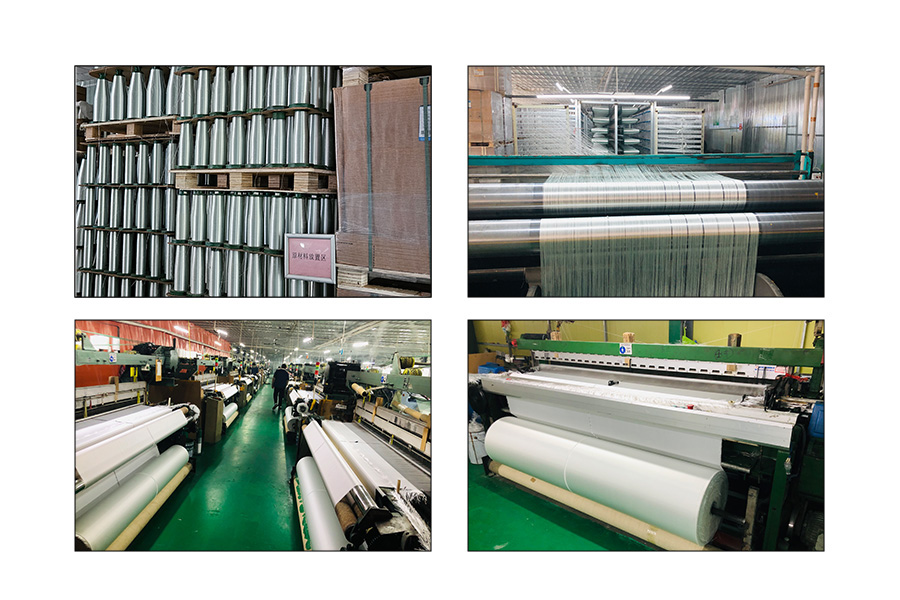

Factory-direct manufacturer: In-house fiberglass fabric production, coating, finishing, inspection, and packing support.
Stable batch quality: Strict control of yarn quality, fabric density, weight, thickness, surface finish, and roll quality.
Fire protection expertise: Long-term focus on fiberglass materials for welding, insulation, fireproof curtains, and industrial safety products.
Custom processing: Width, roll length, coating type, surface treatment, color, cutting, sewing, and packaging can be customized.
B2B export support: Suitable for manufacturers, distributors, insulation contractors, welding blanket producers, shipyards, and industrial maintenance companies.
Technical selection support: Material recommendations based on temperature, spark exposure, coating requirement, and application environment.
Fiberglass yarn and weaving quality inspection
Fabric weight, thickness, width, roll length, and appearance control
Tensile strength and tear resistance testing
Heat resistance and flame resistance evaluation
Surface treatment and coating adhesion inspection for coated versions
Packing, labeling, and export carton inspection
RoHS / REACH compliant materials available upon request
Each roll of 3732 fiberglass cloth is wrapped with moisture-proof protective film to reduce contamination and transport damage.
Carton, woven bag, pallet, and reinforced export packing are available for bulk shipments.
Custom roll labels, carton marks, branding, and OEM packaging can be provided for distributors and project buyers.
Typical production lead time is 7–15 days depending on quantity, coating requirement, and customization.
Samples are available for qualified B2B customers for welding blanket, insulation, coating, and fire protection testing.
3732 fiberglass cloth is used for welding blankets, fire blankets, fire curtains, thermal insulation covers, heat shields, fire barriers, removable insulation jackets, and as a base fabric for coated fiberglass materials.
Yes. Its heavy-duty construction, high-temperature resistance, and good flexibility make it suitable for welding blankets, spark protection covers, and industrial fireproof blankets.
Yes. E-glass fiberglass is non-combustible and does not support flame spread. 3732 fiberglass cloth is suitable for fire protection, flame barriers, and heat insulation applications.
Yes. RUISHUN can supply silicone coated, vermiculite coated, acrylic coated, PU coated, PTFE coated, graphite coated, and aluminum foil laminated 3732 fiberglass cloth according to different heat, spark, chemical, and abrasion resistance requirements.
The typical weight is approx. 430 g/m², and the typical thickness is approx. 0.40 – 0.43 mm. Custom width, roll length, surface treatment, and coated versions are available.
RUISHUN is a fiberglass fabric manufacturer supplying 3732 fiberglass cloth, 3784 fiberglass fabric, electronic fiberglass fabric, coated fiberglass fabric, fire blankets, and custom fiberglass materials for global B2B customers.
Please provide the required width, roll length, quantity, surface finish, coating type if needed, application, packing requirement, and destination country. RUISHUN will recommend the suitable specification and provide factory-direct pricing.
Contact RUISHUN for factory-direct pricing on 3732 fiberglass cloth, industrial fireproof fiberglass fabric, welding blanket fabric, fire curtain fabric, thermal insulation fiberglass cloth, silicone coated 3732 fabric, vermiculite coated fiberglass cloth, and aluminum foil laminated fiberglass fabric. We support samples, custom specifications, coated processing, OEM packaging, bulk orders, and long-term supply cooperation.
