Smart Fiberglass Solutions Contact Us Now
3784
100 M²
ISO9000，CE,EN13501,SGS,etc
0.8mm
White
7-15 days
A Grade
1M,1.2M,1.5m,1.8m,2.0m(customizable)
850g/m²
Product Description

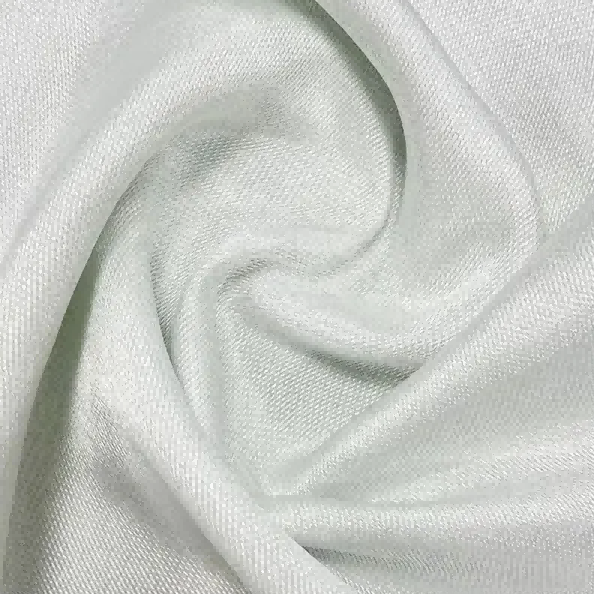

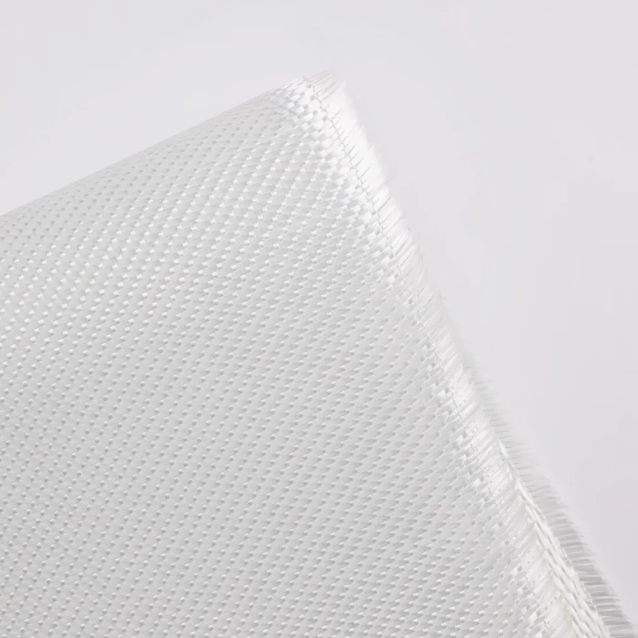

RUISHUN® 3784 fiberglass fabric is a heavy-duty E-glass woven fabric designed for high-temperature insulation, fire protection, welding blankets, fire curtains, expansion joints, removable insulation covers, and coated fiberglass materials.
Woven in an 8-harness satin weave, 3784 fiberglass cloth provides high tensile strength, excellent flexibility, smooth surface quality, thermal stability, and good coating adhesion. It is widely used as a base fabric for silicone coated fiberglass fabric, PU coated fiberglass cloth, PTFE coated fiberglass fabric, acrylic coated fabric, and aluminum foil laminated fiberglass fabric.
As a fiberglass fabric manufacturer and source factory, RUISHUN supplies stable-quality 3784 glass cloth with custom width, roll length, surface treatment, coating, packing, and OEM support for global industrial customers.
| Product Name | 3784 Fiberglass Fabric / 3784 E-Glass Cloth / Heavy-Duty Fiberglass Cloth |
| Material | E-glass fiberglass yarn |
| Weave Type | 8-harness satin weave |
| Typical Weight | Approx. 850 g/m² |
| Typical Thickness | Approx. 0.8 mm |
| Temperature Resistance | Continuous use up to approx. 550°C for fiberglass base fabric |
| Main Applications | Welding blankets, fire curtains, insulation jackets, expansion joints, heat shields, coated fiberglass fabrics |
3784 fiberglass fabric is a heavy-weight industrial E-glass cloth with an 8-harness satin weave structure. It is designed for applications requiring high strength, heat resistance, flexibility, fire resistance, and coating compatibility.
Because of its smooth surface and heavy-duty construction, 3784 fiberglass cloth is commonly selected as a reinforcement base fabric for coated glass fabrics, welding protection materials, removable insulation systems, and high-temperature industrial barriers.
Heavy-duty fabric weight: Approx. 850 g/m² for high strength, durability, and industrial protection.
High temperature resistance: Fiberglass base fabric can withstand continuous temperatures up to approx. 550°C.
Fire-resistant and non-combustible: Suitable for welding protection, fire barriers, and thermal insulation systems.
8-harness satin weave: Smooth surface, good drape, high flexibility, and excellent coating compatibility.
Good electrical insulation: Suitable for thermal and electrical insulation applications.
Chemical and corrosion resistance: Performs reliably in many harsh industrial environments.
Ideal coating substrate: Can be coated with silicone, PU, PTFE, acrylic, graphite, vermiculite, or laminated with aluminum foil.
| Property | Typical Specification |
|---|---|
| Fabric Type | 3784 fiberglass fabric |
| Material | E-glass fiber |
| Weave | 8-harness satin weave |
| Weight | Approx. 850 g/m² |
| Thickness | Approx. 0.8 mm |
| Standard Width | 1000 mm / 1270 mm / 1550 mm, custom width available |
| Continuous Temperature | Up to approx. 550°C for fiberglass base fabric |
| Color | White; dyed or treated options available |
| Surface Treatment | Heat cleaned, coating-ready, or customized finish |
| Supply Form | Roll goods, cut sheets, or processed coated fabric |
Note: Specifications may vary slightly depending on production batch, surface treatment, coating, and custom requirements.
RUISHUN 3784 fiberglass fabric is used in demanding industrial environments where strength, heat resistance, fire resistance, and insulation performance are required.

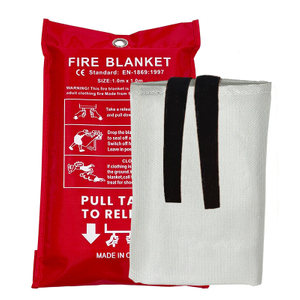

Fireproof blankets and welding protection blankets
Removable insulation jackets and insulation covers
High-temperature thermal insulation systems
Fire curtains, fire barriers, and smoke barriers
Expansion joints and flexible connectors
Composite reinforcement with resin systems
Industrial heat shields and protective layers
Base cloth for silicone, PU, PTFE, acrylic, and aluminum foil coated fiberglass materials
RUISHUN can further process 3784 fiberglass fabric into coated or laminated products to improve abrasion resistance, water resistance, chemical resistance, reflectivity, non-stick performance, and service life.
| Coated Version | Main Advantages | Typical Applications |
|---|---|---|
| Silicone Coated 3784 Fiberglass Fabric | Abrasion resistance, waterproof surface, flexibility, spark resistance | Welding blankets, fire curtains, insulation covers |
| PU Coated 3784 Fiberglass Cloth | Improved surface strength and handling performance | Protective covers, light-duty fire barriers, insulation panels |
| PTFE Coated Fiberglass Fabric | Non-stick surface, chemical resistance, low friction | Release sheets, conveyor belts, heat sealing, chemical processing |
| Aluminum Foil Laminated Fiberglass Fabric | Radiant heat reflection and surface protection | Heat shields, removable insulation jackets, equipment protection |

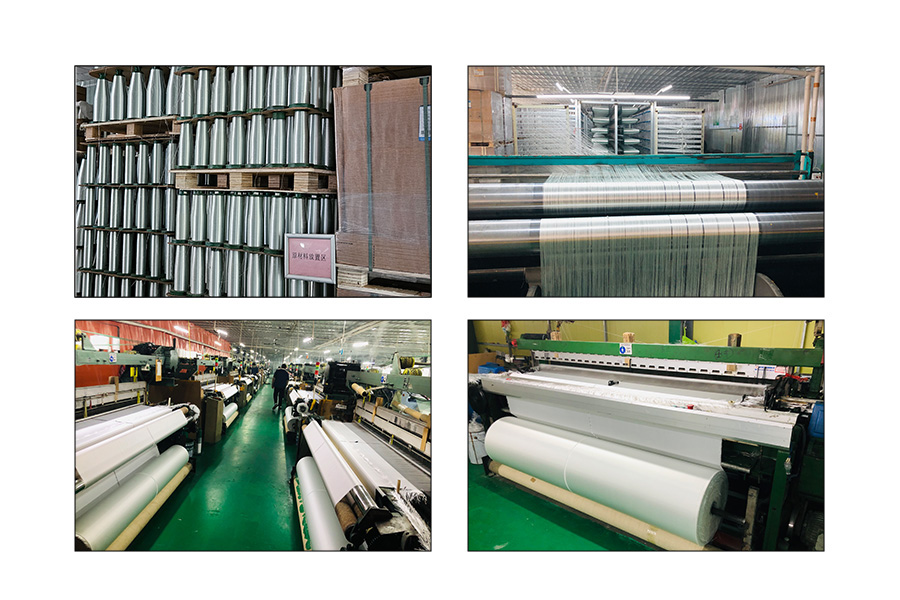

Source factory supply: Direct fiberglass fabric manufacturing with stable production capacity.
Consistent quality: Controlled weight, thickness, width, weave structure, surface quality, and roll packing.
Coating and finishing capability: Silicone, PU, PTFE, acrylic, aluminum foil lamination, cutting, sewing, and OEM processing available.
Custom specification support: Width, roll length, surface treatment, coating type, color, and packaging can be customized.
B2B export experience: Suitable for manufacturers, distributors, insulation contractors, shipyards, power plants, and industrial service companies.
Technical support: Material selection guidance for fire protection, insulation, coating, and high-temperature applications.
Fiberglass yarn and weaving quality inspection
Fabric weight, thickness, width, and roll length control
8-harness satin weave structure and surface inspection
Tensile strength and dimensional stability testing
Heat resistance and flame resistance evaluation
Coating adhesion and coating thickness inspection for coated versions
RoHS / REACH compliant materials available upon request
Each roll of fiberglass fabric is wrapped with moisture-proof protective film to reduce contamination and transport damage.
Carton, woven bag, pallet, and reinforced export packing are available according to shipment requirements.
Custom roll labels, carton marks, branding, and OEM packaging can be provided for distributors and industrial buyers.
Typical lead time is 7–15 days depending on order quantity, coating requirement, and customization.
Samples are available for qualified B2B customers for coating tests, insulation evaluation, and production trials.
3784 fiberglass fabric is used for welding blankets, fireproof blankets, thermal insulation covers, fire curtains, expansion joints, flexible connectors, heat shields, and as a base cloth for coated fiberglass materials.
Yes. 3784 fiberglass cloth is non-combustible and suitable for high-temperature fire protection and thermal insulation applications. The fiberglass base fabric can withstand continuous temperatures up to approx. 550°C.
3784 fiberglass cloth uses an 8-harness satin weave. This structure provides a smooth surface, high flexibility, good drape, strong mechanical performance, and excellent coating compatibility.
Yes. RUISHUN can coat or laminate 3784 fiberglass fabric with silicone, PU, PTFE, acrylic, graphite, vermiculite, or aluminum foil according to the required heat resistance, abrasion resistance, water resistance, chemical resistance, and surface performance.
The typical weight is approx. 850 g/m² and the typical thickness is approx. 0.8 mm. Custom specifications may be available depending on production and application requirements.
RUISHUN is a fiberglass fabric manufacturer and source factory supplying industrial fiberglass cloth, electronic fiberglass fabric, coated fiberglass fabric, fire blankets, and customized fiberglass materials.
Please provide the required width, roll length, quantity, surface treatment, coating type if needed, application, packing requirement, and destination country. RUISHUN will recommend a suitable specification and provide factory-direct pricing.
Contact RUISHUN for factory-direct pricing on 3784 fiberglass fabric, heavy-duty E-glass cloth, 8-harness satin fiberglass fabric, silicone coated 3784 fabric, PU coated fiberglass cloth, PTFE coated fiberglass fabric, and aluminum foil laminated fiberglass fabric. We support samples, custom specifications, coated processing, bulk orders, and long-term supply cooperation.
