Smart Fiberglass Solutions Contact Us Now
666
100 M²
ISO9000，CE,EN13501,SGS,etc
0.6mm
White
7-15 days
A Grade
1M,1.2M ,1.5M(customizable)
650 g/m²
Product Description

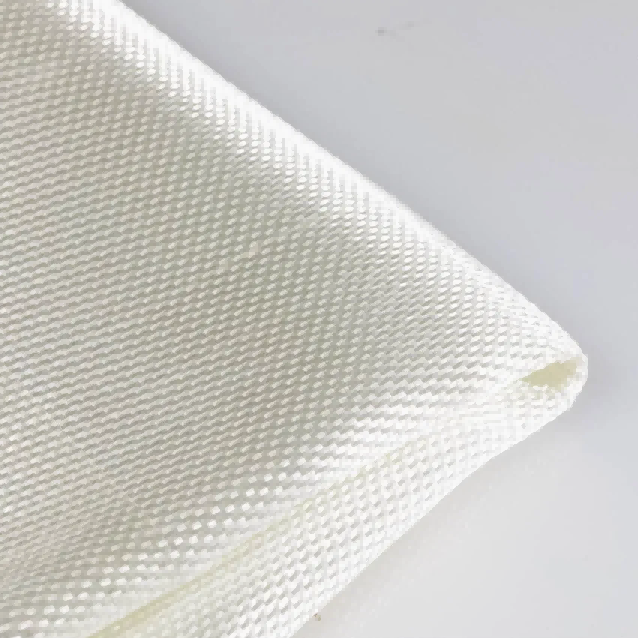

RUISHUN 666 Fiberglass Fabric is a heavy-duty E-glass fiberglass cloth woven in an 8-harness satin weave. It is designed for high temperature resistance, excellent mechanical strength, smooth surface performance, and good flexibility for industrial insulation and fireproof applications.
As a professional fiberglass fabric manufacturer, RUISHUN supplies 666 fiberglass fabric as a base cloth for welding blankets, fire blankets, thermal insulation covers, coated fiberglass fabrics, fireproof barriers, and composite reinforcement materials.
Thanks to its satin weave structure, 666 fiberglass fabric offers better drapeability, smoother appearance, and improved coating performance compared with standard plain weave fiberglass cloth.

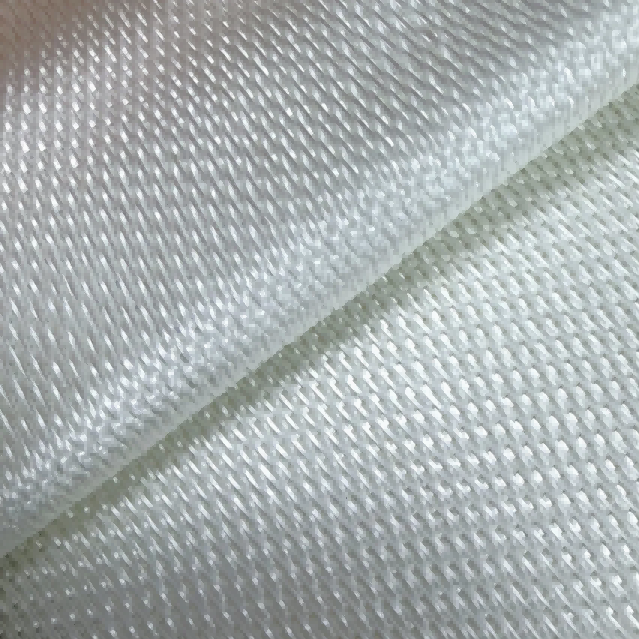

666 fiberglass fabric is a medium-heavy E-glass woven fabric with an 8HS satin weave structure. It combines high tensile strength, heat resistance, dimensional stability, and processing flexibility, making it suitable for industrial heat protection and coated fabric production.
It is commonly used as a base material for silicone coated fiberglass fabric, PU coated fiberglass fabric, acrylic coated fiberglass fabric, aluminum foil laminated fiberglass fabric, and vermiculite coated fiberglass fabric.
666 fiberglass fabric can withstand continuous working temperatures up to 550°C, making it suitable for welding protection, fire-resistant products, thermal insulation, and industrial heat shielding.
The fabric provides excellent tensile strength, tear resistance, and dimensional stability under thermal stress, helping finished products maintain stable performance during long-term industrial use.
The 8HS satin weave provides a smoother surface, better flexibility, and improved drapeability. This makes the fabric easier to coat, laminate, cut, sew, and fabricate into finished insulation or fire protection products.
E-glass fiberglass is inherently flame-resistant and non-combustible, making 666 fiberglass fabric a reliable base material for fireproof cloth, welding blankets, and heat protection barriers.
The fabric offers good electrical insulation and chemical resistance, making it suitable for harsh industrial environments, insulation systems, and protective composite materials.
666 fiberglass fabric is compatible with silicone, PU, acrylic, aluminum foil, and vermiculite coating systems, allowing different performance upgrades for heat resistance, waterproofing, abrasion resistance, and spark protection.
| Property | Specification |
|---|---|
| Product Name | 666 Fiberglass Fabric / 666 E-Glass Cloth |
| Material | E-glass fiberglass |
| Weave Type | 8 Harness Satin, 8HS |
| Areal Weight | Approx. 600–650 g/m² |
| Thickness | Approx. 0.55–0.60 mm |
| Continuous Working Temperature | Up to 550°C |
| Color | White, custom colors available |
| Roll Width | 1000 mm / 1270 mm / customized |
| Surface Treatment | Heat cleaned / desized optional |
| Coating Compatibility | Silicone, PU, acrylic, aluminum foil, vermiculite |
Custom weight, thickness, width, surface treatment, coating, roll length, and packaging options can be provided according to application requirements.
666 fiberglass fabric is widely used in industrial insulation, fire protection, coated fabric production, and composite reinforcement applications.
Welding blankets and fire blankets
Fire and smoke curtains
Thermal insulation covers and removable insulation pads
Heat shields and fireproof barriers
Silicone coated fiberglass fabrics
PU coated fiberglass fabrics
Acrylic coated fiberglass fabrics
Aluminum foil laminated fiberglass fabrics
Vermiculite coated fiberglass fabrics
Industrial insulation systems
Composite reinforcement materials
| Comparison Item | 666 Fiberglass Fabric | Plain Weave Fiberglass Cloth |
|---|---|---|
| Weave Structure | 8-harness satin weave | Plain weave |
| Surface Smoothness | Smoother surface | More textured surface |
| Flexibility | Better drapeability | Standard flexibility |
| Coating Performance | Better for coating and lamination | Suitable for general coating |
| Typical Use | Fireproof cloth, coated fabrics, welding blankets, insulation covers | General reinforcement, light insulation, basic protective fabric |
RUISHUN can use 666 fiberglass fabric as the base material for various coated and laminated fiberglass products. Different surface treatments can improve water resistance, abrasion resistance, radiant heat reflection, spark protection, and chemical resistance.
Silicone coated 666 fiberglass fabric for waterproofing, flexibility, and abrasion resistance
PU coated 666 fiberglass fabric for clean surface and improved handling
Acrylic coated 666 fiberglass fabric for fabric stability and easier fabrication
Aluminum foil laminated 666 fiberglass fabric for radiant heat reflection
Vermiculite coated 666 fiberglass fabric for welding spark and slag protection
Heat cleaned or desized surface treatment for further processing

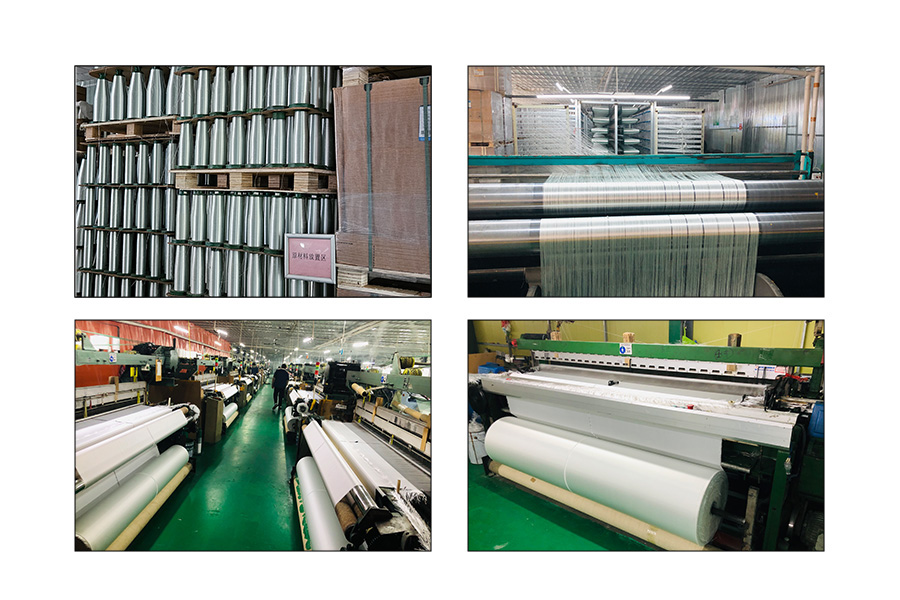

RUISHUN controls fiberglass yarn sourcing, weaving, finishing, coating, and quality inspection, helping ensure stable quality, consistent fabric structure, and better cost control for bulk orders.
Each batch can be inspected for weight, thickness, weave structure, appearance, tensile strength, width, roll condition, and surface treatment to support stable performance in industrial applications.
RUISHUN supports custom width, weight, coating, roll length, color, surface treatment, packaging, labeling, and private label solutions for distributors, manufacturers, and industrial buyers.
By supplying directly from the factory, RUISHUN provides competitive pricing, reliable production capability, flexible customization, and on-time global delivery for bulk fiberglass fabric orders.
Each roll of fiberglass fabric is wrapped with moisture-proof protective film to prevent damage during handling and shipping.
Palletized shipping is available for bulk and large-volume orders.
Custom labeling, branding, and OEM packaging options are available for distributors and industrial clients.
Fast production lead time is typically 7–15 days, depending on order quantity and customization requirements.
Samples are available for qualified B2B distributors and buyers for material testing before bulk purchasing.
RUISHUN supports quality assurance for industrial buyers through heat resistance testing, coating durability evaluation, tensile strength testing, optional RoHS / REACH compliant materials, and sample evaluation before bulk orders.
RUISHUN serves global B2B customers in welding protection, fire-resistant fabric, industrial insulation, coated fiberglass fabric, composite reinforcement, and high-temperature material markets.
666 fiberglass fabric is mainly used for fireproof protection, thermal insulation, welding blankets, fire blankets, smoke curtains, coated fiberglass fabrics, insulation covers, and composite reinforcement materials.
666 fiberglass fabric uses an 8-harness satin weave, which provides better flexibility, a smoother surface, improved drapeability, and better coating and sewing performance than many plain weave fabrics.
Yes. E-glass fiberglass is inherently non-combustible and suitable for high-temperature and fire-resistant applications. Its continuous working temperature can reach up to 550°C.
Yes. It can be coated or laminated with silicone, PU, acrylic, aluminum foil, or vermiculite to improve waterproofing, abrasion resistance, radiant heat reflection, spark protection, and overall durability.
Yes. RUISHUN supports customized weight, width, roll length, surface treatment, coating type, color, packaging, labeling, and OEM solutions.
Yes. Samples are available for qualified B2B buyers to test fabric thickness, surface, flexibility, coating suitability, and heat resistance before bulk purchasing.
Contact RUISHUN with your required weight, thickness, width, roll length, surface treatment, coating type, application, and order quantity. Our team can recommend a suitable 666 fiberglass fabric solution for welding blankets, fireproof fabrics, coated fiberglass materials, insulation covers, or OEM industrial production.
