Product Description

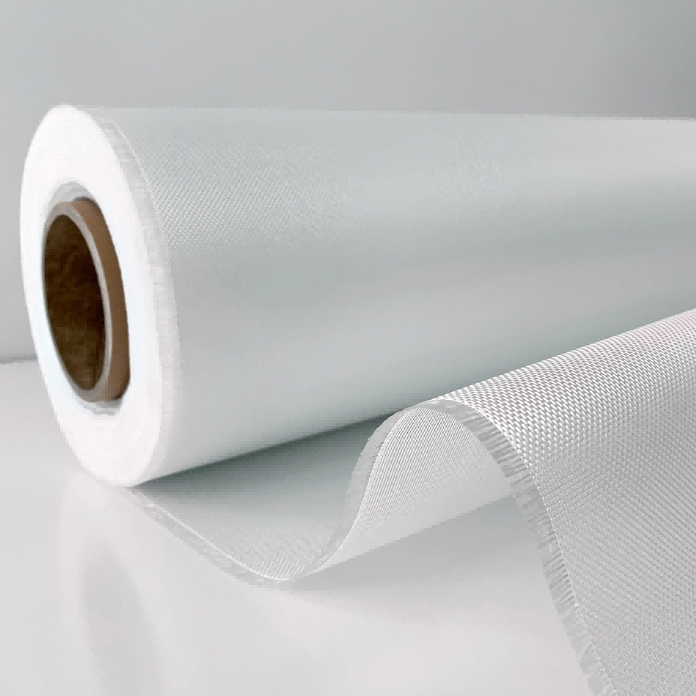

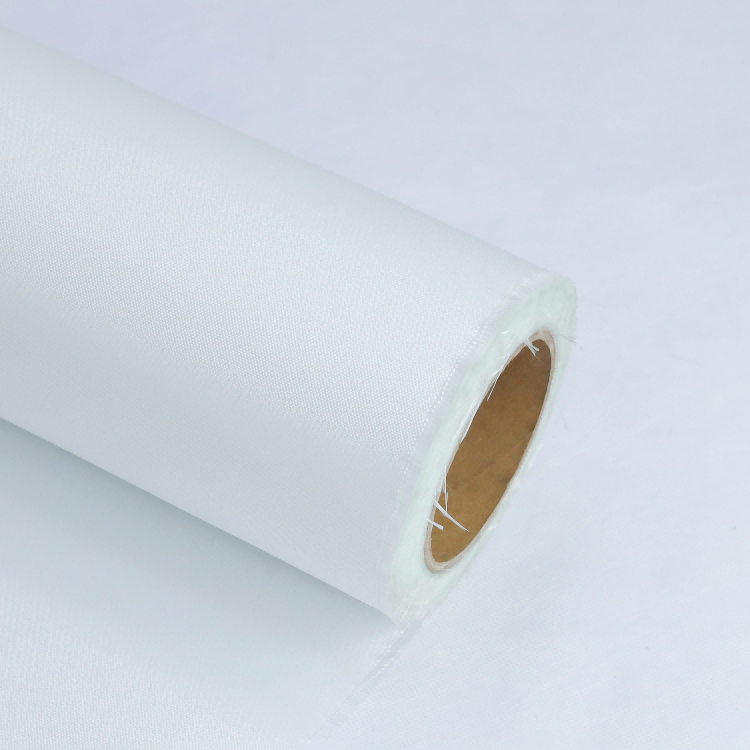

RUISHUN E-Glass Fiberglass Fabric is a premium alkali-free woven fiberglass cloth designed for composite reinforcement, electrical insulation, PCB laminates, thermal protection, fire-resistant materials, and industrial applications.
Manufactured from continuous-filament E-glass yarns, RUISHUN fiberglass fabric provides excellent mechanical strength, dimensional stability, thermal resistance, dielectric performance, and resin compatibility. Standard industrial grades include 3732, 3784, 666, 3788, 7628, 2116, and customized constructions.
As a professional fiberglass fabric source manufacturer, RUISHUN supports custom weight, thickness, weave style, width, roll length, coating, packaging, and OEM bulk supply for global B2B buyers.
E-glass fiberglass fabric is an alkali-free woven glass fiber cloth made from continuous E-glass yarns. It is widely used as reinforcement material, insulation base cloth, protective fabric, and composite substrate in industrial manufacturing.
Compared with general textile materials, E-glass fabric offers higher strength, better heat resistance, excellent electrical insulation, low shrinkage, and strong compatibility with epoxy, polyester, vinyl ester, and phenolic resin systems.
Made from alkali-free E-glass continuous filament yarns
Available in plain, twill, and satin weave structures
Standard grades include 3732, 3784, 666, 3788, 7628, and 2116
Excellent mechanical strength and dimensional stability
Continuous service temperature up to 550°C
Good electrical insulation and dielectric properties
Compatible with epoxy, polyester, vinyl ester, and phenolic resins
Lightweight, low shrinkage, and easy resin impregnation
Suitable for composites, PCB, electrical insulation, thermal protection, and fire-resistant products
| Grade | Typical Weight | Thickness | Weave Style | Typical Applications |
|---|---|---|---|---|

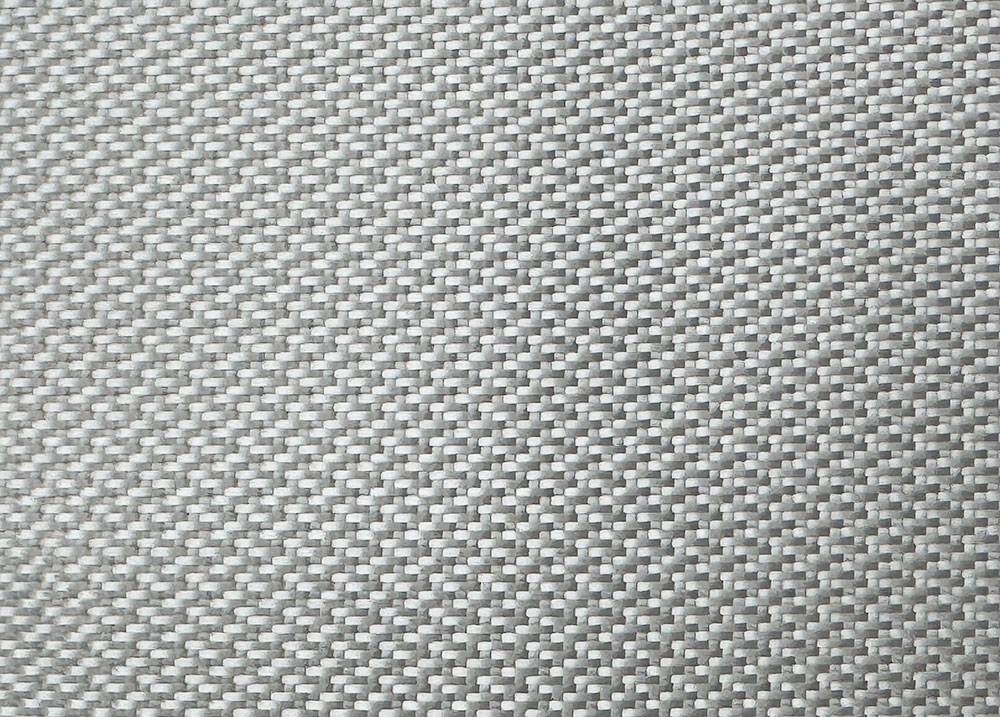

| 3732 | ~430 g/m² | ~0.40 mm | Satin | Composite reinforcement, insulation, coated fabrics |

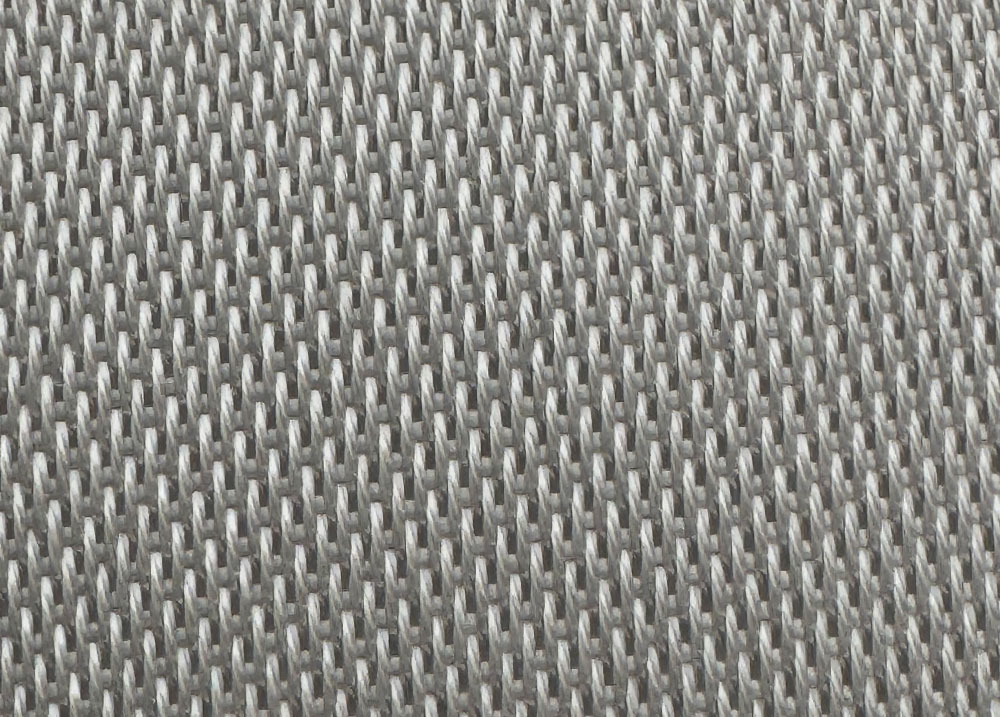

| 3784 | ~880 g/m² | ~0.76 mm | Satin | Heavy-duty composites, insulation covers, fire-resistant products |

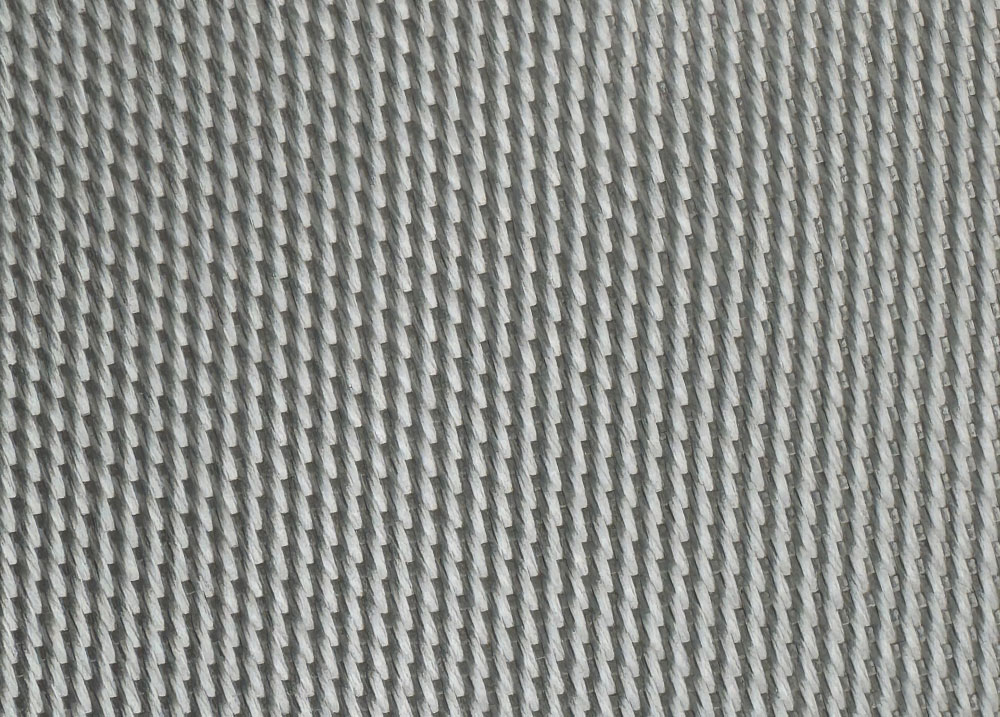

| 666 | ~660 g/m² | ~0.58 mm | Satin | FRP reinforcement, epoxy, polyester, vinyl ester systems |

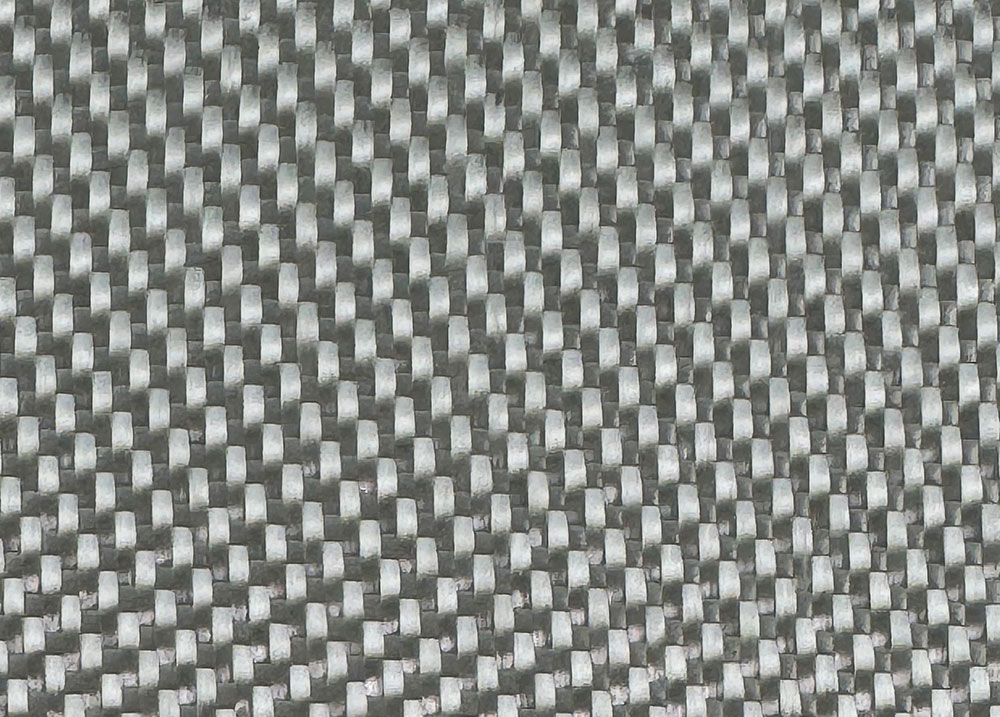

| 3788 | ~1630 g/m² | ~1.36 mm | Satin | Heavy composite structures and high-strength reinforcement |

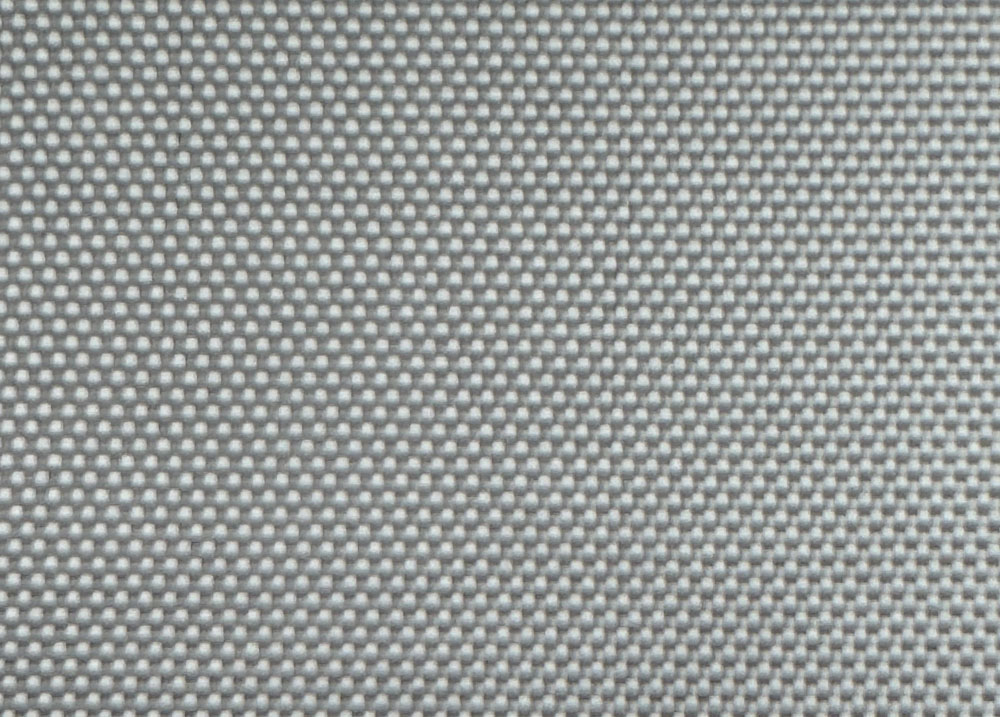

| 7628 | ~208 g/m² | ~0.20 mm | Plain | PCB and copper clad laminates |

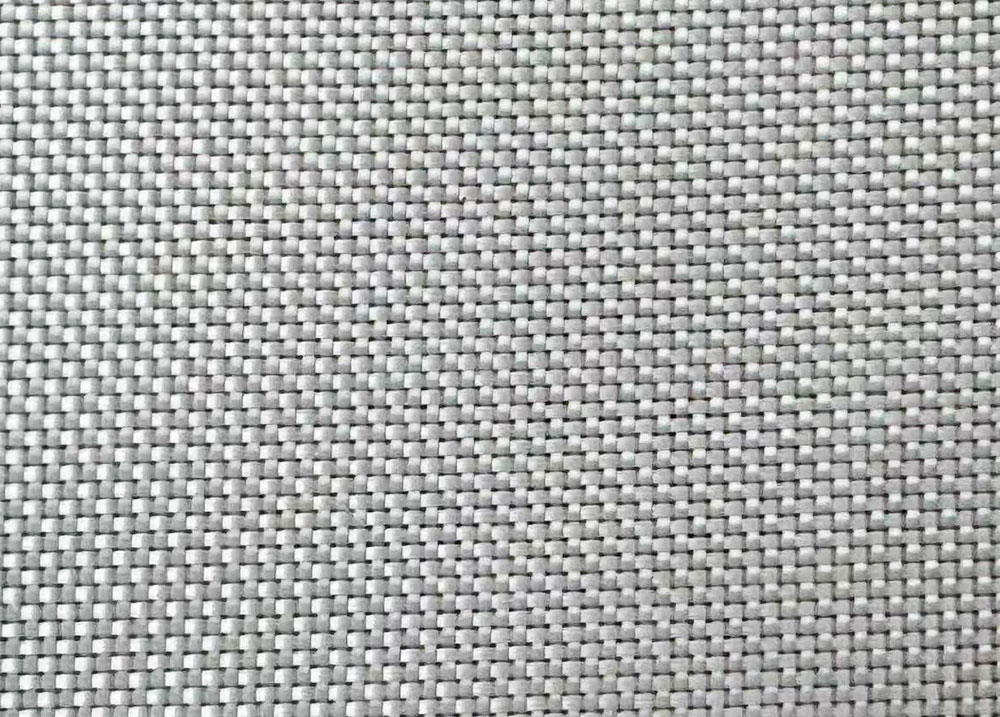

| 2116 | ~103 g/m² | ~0.10 mm | Plain | High-precision thin PCB laminates |
3732
3784
666
3788
7628
2116
Other weights, thicknesses, widths, weave constructions, and special fabric structures are available on request.
| Property | Unit | Typical Range |
|---|---|---|
| Material Type | — | E-glass fiberglass, alkali-free |
| Areal Weight | g/m² | 25–1200 |
| Thickness | mm | 0.02–1.5 |
| Weave Style | — | Plain / Twill / Satin |
| Roll Width | mm | 1000–2200, custom available |
| Tensile Strength | N/50mm | Warp 700–900 / Weft 650–800 |
| Elongation at Break | % | 2.5–3.0 |
| Continuous Service Temperature | °C | Up to 550 |
| Resin Compatibility | — | Epoxy, polyester, vinyl ester, phenolic |
E-glass fiberglass fabric is used as reinforcement for hand lay-up, vacuum infusion, compression molding, pultrusion, and laminated composite structures in marine, automotive, aerospace, and industrial components.

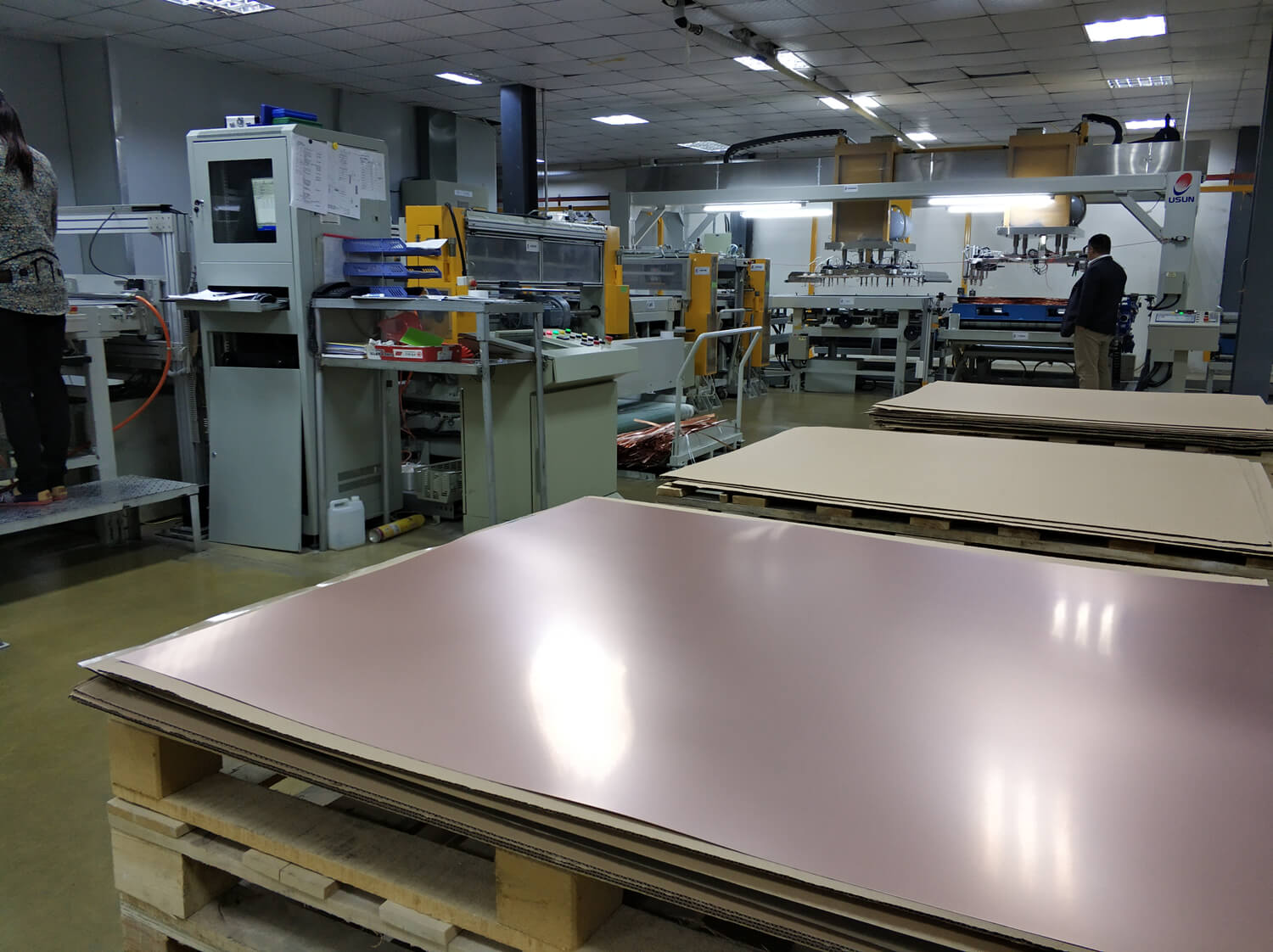

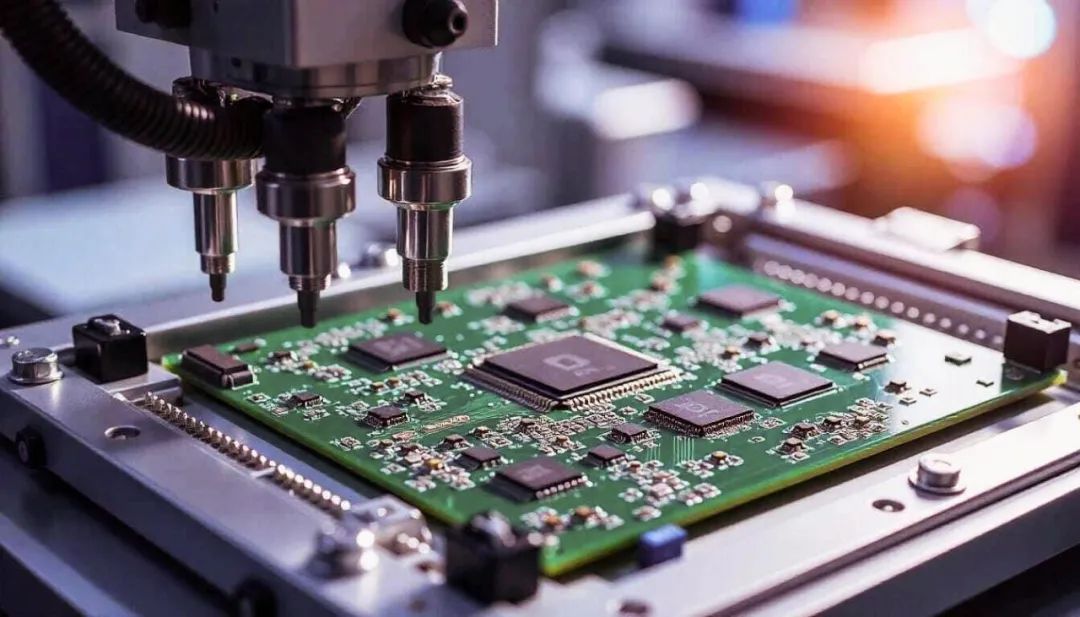

Thin E-glass fabric grades such as 7628 and 2116 are commonly used for PCB base cloth, copper clad laminates, FR4 boards, transformer insulation, motor insulation, and electrical component liners.

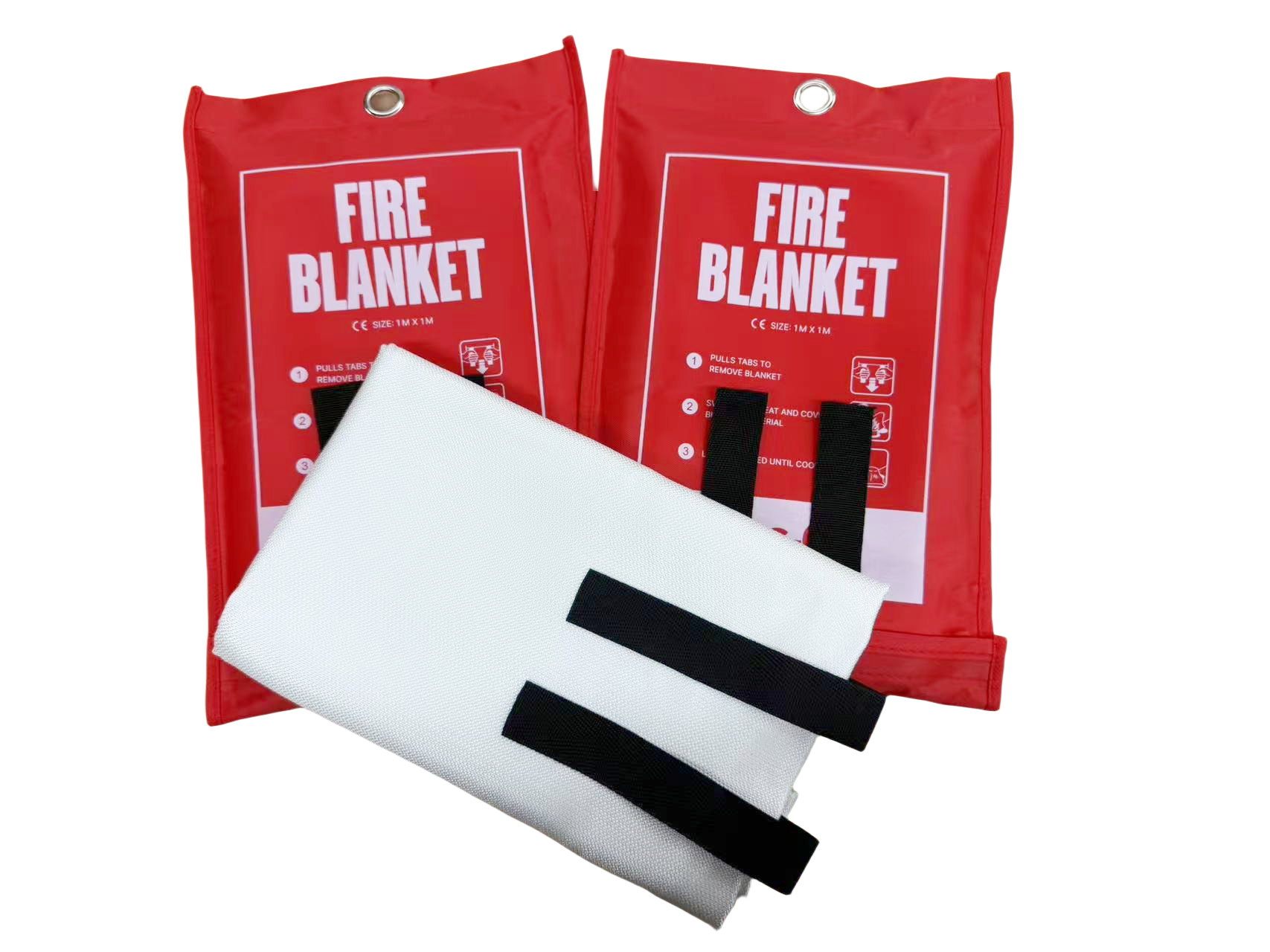

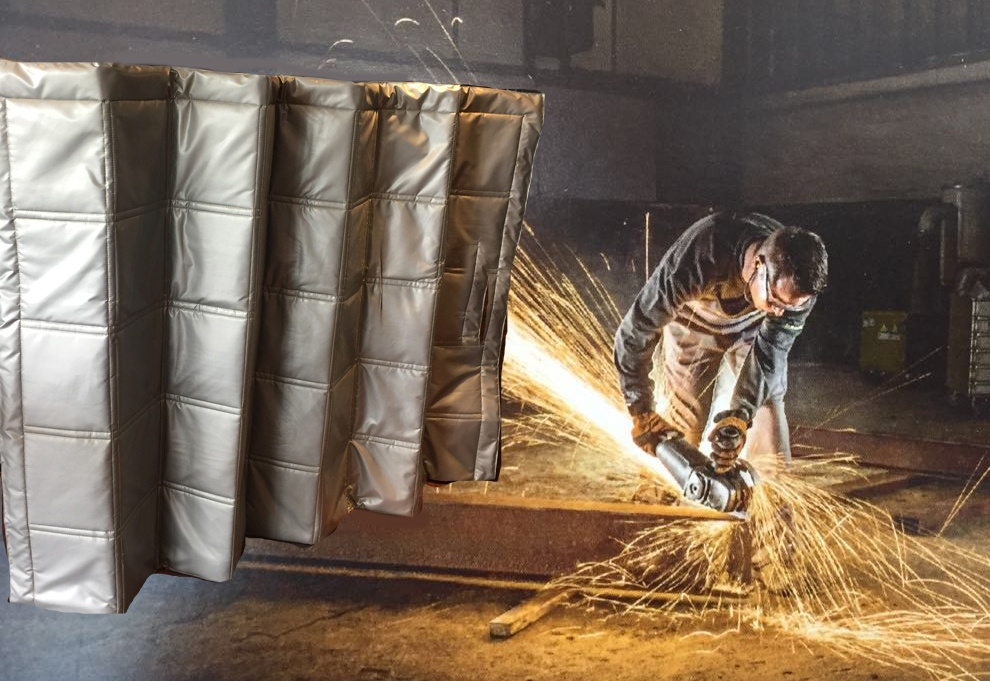

E-glass fabric can be used for insulation blankets, fire protection sheets, welding curtains, furnace protection layers, hot-work barriers, and coated fire-resistant fabrics.

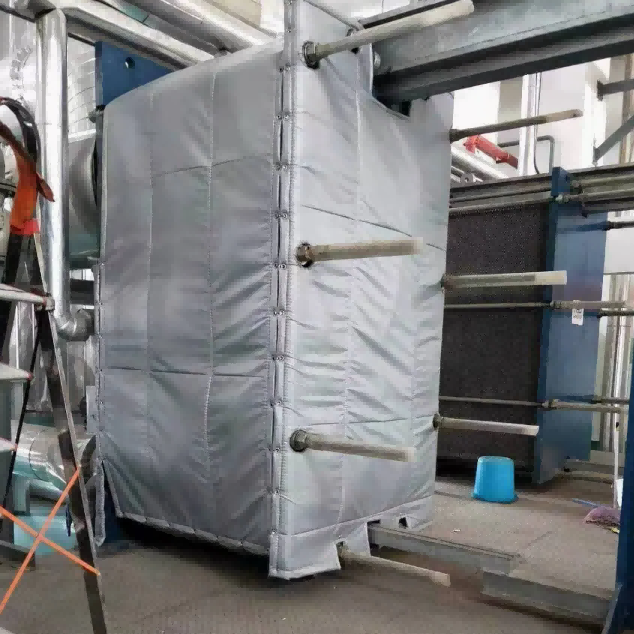

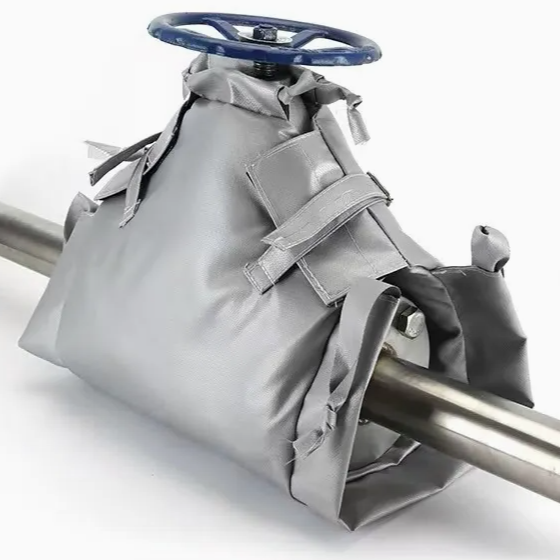

E-glass fabric is used for FRP structures, duct insulation, pipe insulation, tank reinforcement, removable insulation covers, protective linings, and chemical or petrochemical environments.

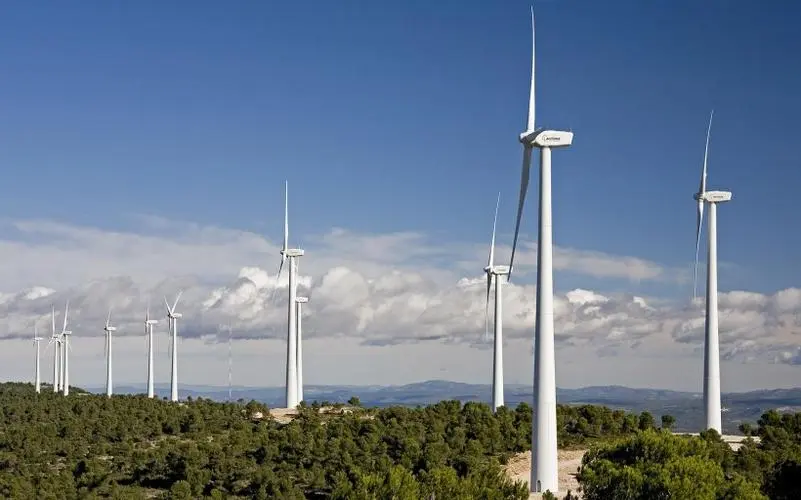

E-glass fabric is suitable for hulls, panels, structural reinforcement, prepreg applications, interior components, wind energy parts, and industrial composite products.
RUISHUN manufactures E-glass fiberglass fabric under strict quality control to help ensure stable fiber properties, consistent weaving structure, reliable thickness, and long-term performance.
Multiple weights, thicknesses, widths, roll lengths, weave styles, and fabric grades are available to match composite, insulation, electrical, and industrial project requirements.
RUISHUN E-glass fabric works with epoxy, polyester, vinyl ester, and phenolic resin systems, making it suitable for hand lay-up, vacuum infusion, prepreg, FRP molding, and laminated composite production.
The fabric provides heat resistance up to 550°C and excellent dielectric properties, making it suitable for electrical insulation, PCB substrates, thermal barriers, and fire-resistant materials.
E-glass fiberglass fabric combines strength, heat resistance, electrical insulation, and processing flexibility at competitive pricing for bulk industrial procurement.
Roll packaging with standard roll widths from 1000 mm to 2200 mm
Roll lengths customized according to customer request
Folded sheets available for smaller quantities or easy handling
Protective polyethylene or shrink-wrap packaging
Sturdy cartons for international shipment

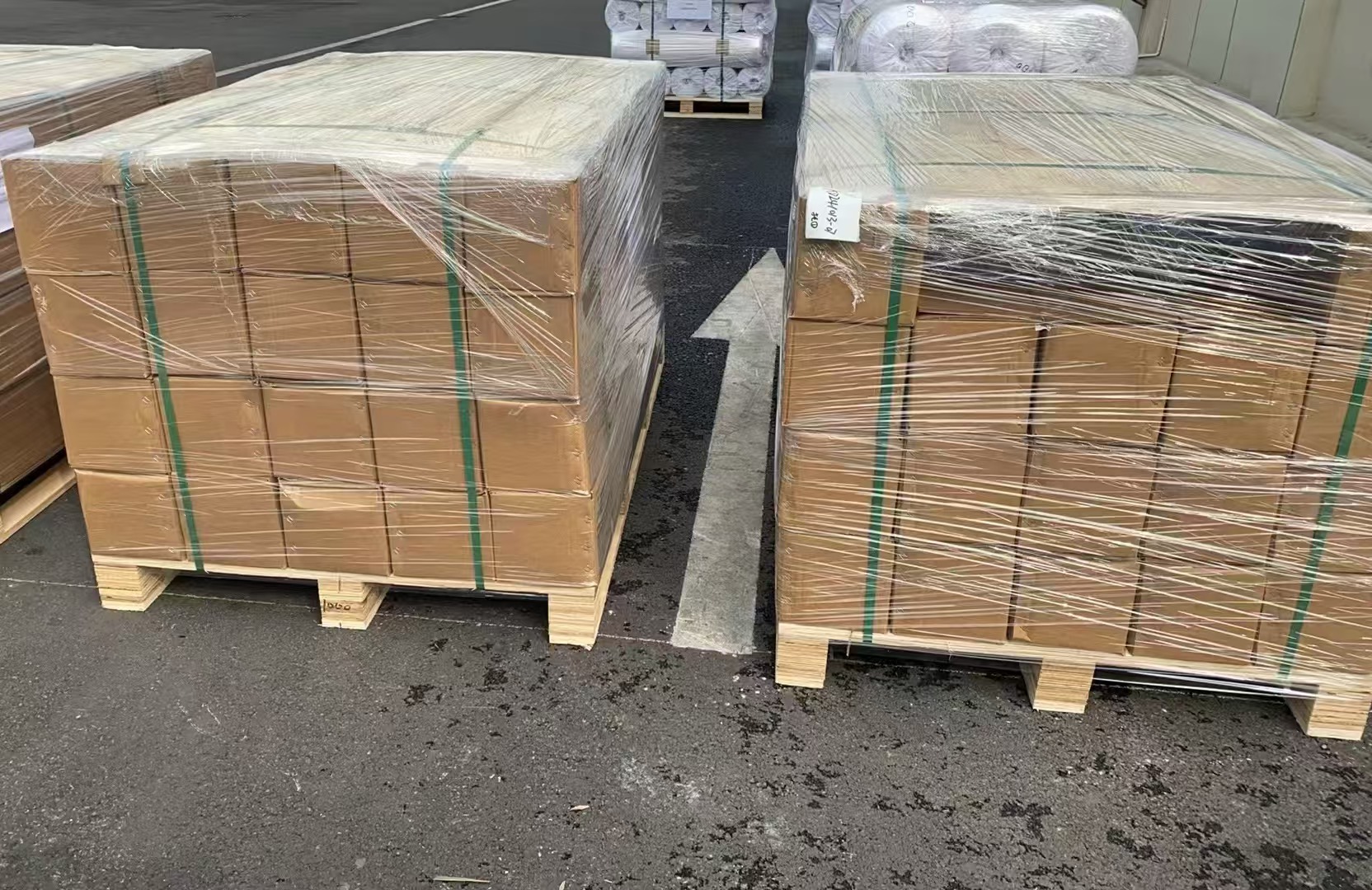

Optional palletization for bulk shipments
Packaging helps prevent moisture, dust, and mechanical damage during transport

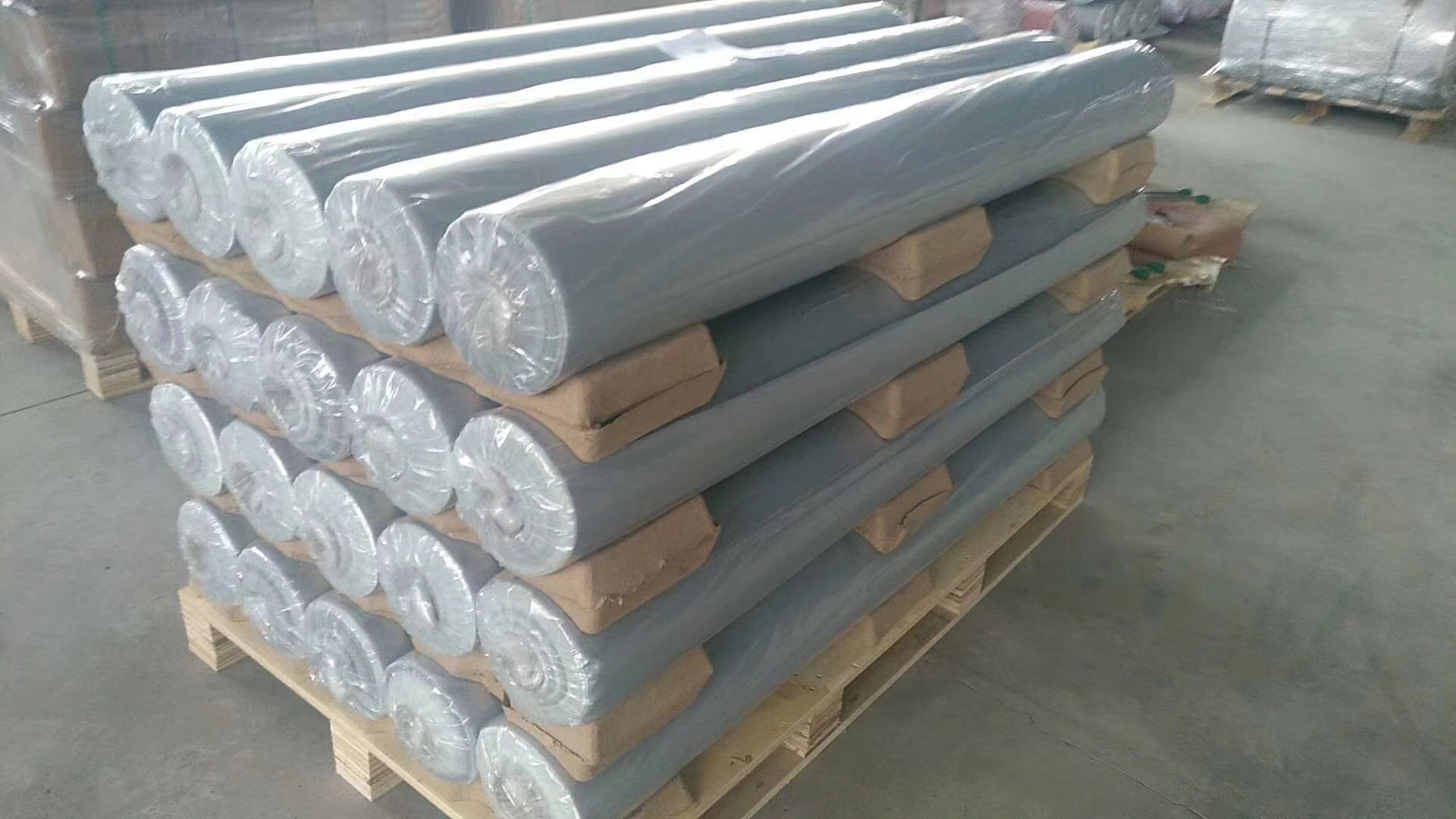

Palletized loading is available for safer handling of bulk shipments
OEM packaging and labeling can be customized for distributors
FOB, CIF, and EXW terms available
Lead time: 5–15 working days depending on order quantity and customization
Shipping by sea, air, or express courier depending on destination and urgency
RUISHUN supports global industrial buyers with product documentation, quality inspection support, and certification information for procurement approval and project evaluation.
RUISHUN serves international B2B customers in composites, PCB, electrical insulation, automotive, aerospace, marine, industrial protection, and fire-resistant material markets.
E-glass fiberglass fabric is used for composite reinforcement, PCB base cloth, copper clad laminates, electrical insulation, thermal protection, fire-resistant fabrics, FRP structures, automotive parts, marine components, and industrial protective materials.
RUISHUN E-glass fiberglass fabric is suitable for continuous use up to approximately 550°C, depending on fabric structure, coating, and actual working conditions.
Common grades include 3732, 3784, 666, 3788, 7628, and 2116. Custom weights, thicknesses, widths, weave styles, and constructions are also available.
Yes. RUISHUN provides full customization for width, thickness, weight, weave type, roll length, fabric grade, coating, packaging, and OEM requirements.
Yes. Thin E-glass fabric grades such as 7628 and 2116 are widely used for PCB base cloth, copper clad laminates, FR4 boards, transformer insulation, motor insulation, and electrical component insulation.
E-glass fiberglass fabric is compatible with epoxy, polyester, vinyl ester, and phenolic resin systems, making it suitable for multiple composite manufacturing processes.
Yes. Samples are available for testing and evaluation before bulk purchasing. Shipping costs may vary depending on destination.
Each roll is wrapped with moisture-proof protective film and packed into reinforced cartons. For larger shipments, palletized packaging is available to support safe transportation and handling.
Contact RUISHUN with your required fabric grade, weight, thickness, width, roll length, weave style, resin system, application, and order quantity. Our team can recommend a suitable E-glass fiberglass fabric specification for composites, PCB, insulation, fire protection, or OEM industrial production.
